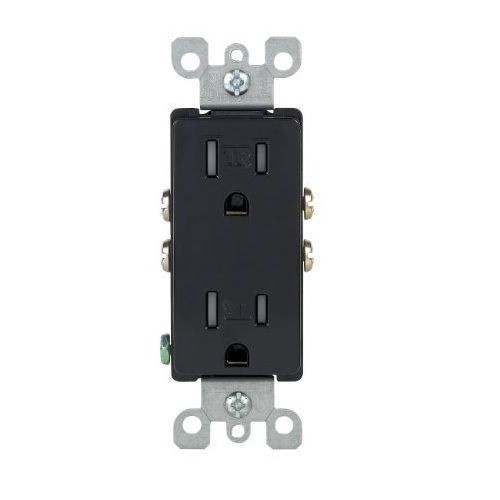

Leviton® Decora® T5325-E Duplex Grounding Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Selected Leviton® Decora® T5325-E Duplex Grounding Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Leviton® Decora® T5325-E Duplex Grounding Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Leviton® decora duplex receptacles are designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings. It also coordinates beautifully with Leviton® complete line of decora devices.

Features

  • Terminal screws accept up to no 12 AWG copper or copper clad wire
  • Double wipe power contacts for reliable conductivity and plug retention
  • Heavy gauge zinc plated steel mounting strap

Specification

Material
Thermoplastic
NEMA Rating
NEMA 5-15R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Catalog ID
LEVT5325-E
Color
Black
Dimensions
4.2 in H x 1.33 in W x 0.76 in D
Enclosure
NEMA WD-6
Temperature Rating
-40 to 60 deg C
Terminal Type
Quickwire Push-In/Side Wired
Type
Grounding Tamper Resistant
Voltage Rating
125 VAC
Application
Commercial Applications
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.22 NO 111, CSA Certified (File LR-406), NOM (057), UL Listed (File E-13399), UL 20, UL Listed 498, UL Listed 943, UL 94 Flammability Rated
