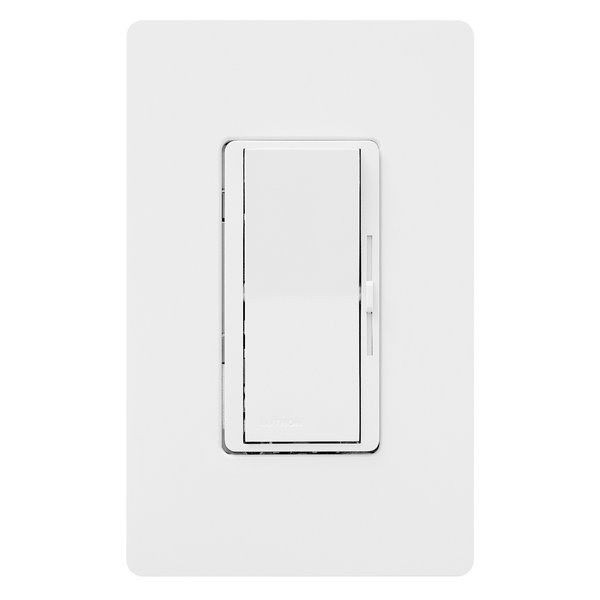

Diva® DVF-103P-277-WH 3-Way 3-Wire Dimmer Switch With Night Light, 277 VAC, 6 A, 1 Poles, On/Off Operation, White

Selected Diva® DVF-103P-277-WH 3-Way 3-Wire Dimmer Switch With Night Light, 277 VAC, 6 A, 1 Poles, On/Off Operation, White
Diva® DVF-103P-277-WH 3-Way 3-Wire Dimmer Switch With Night Light, 277 VAC, 6 A, 1 Poles, On/Off Operation, White

Documents

Short Description

A simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. The paddle switch returns the lights to your favorite level.

Features

  • Slide up to brighten, down to dim
  • Power-failure memory
  • Standard RFI suppression
  • Gloss finish
  • Fluorescent dimming with Hi-Lume® and Eco-10™ (ECO-Series) electronic ballasts

Specification

Frequency Rating
60 Hz
Lamp Type
Fluorescent
Material
Plastic
Mounting Type
Wall
Number Of Poles
1
Operation Mode
On/Off
Power Rating
1000 W
Start Type
Preset
Temperature Rating
0 to 40 deg C
Voltage Rating
277 VAC
Dimensions
4.69 in H x 2.94 in W x 0.3 in D
Color
White
Control
Paddle
Amperage Rating
6 A
Standard & Approvals
UL Listed, CSA, NOM Certified
Type
3-Way 3-Wire
