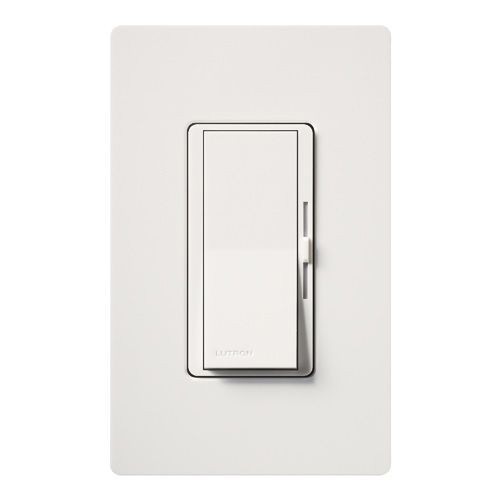

Diva® DVFSQ-FH-WH 1-Pole 3-Way Designer Fan Control, 120 VAC, 1.5 A, 3-Speed/Quiet Operational Mode, White
Diva® DVFSQ-FH-WH 1-Pole 3-Way Designer Fan Control, 120 VAC, 1.5 A, 3-Speed/Quiet Operational Mode, White
SKU: LUTDVFSQ-FH-WH
Manufacturer Part Number: DVFSQ-FH-WH
UPC: 027557708456
Documents
Short Description
Features
- Features a large paddle switch for on/off and a small slide for fan speed control
- 3 quiet fan speeds for increased comfort
- Power-failure memory
- Standard RFI suppression
- Paddle turns on/off
- Slide up to increase speed, down to decrease speed
- For use with only one ceiling paddle fan
- Does not include locator light
- Designed to prevent motor hum
- No derating required if ganged
- Clamshell package
Specification
| Operational Mode | Quiet 3 Speed |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | White |
| Dimensions | 4.69 in H x 2.94 in W |
| Temperature Rating | 32 to 104 deg F |
| Voltage Rating | 120 VAC |
| Application | For commercial and residential applications |
| Mounting | Wall Box |
| Environmental Conditions | 0 to 90% Non-Condensing Relative Humidity |
| Catalog ID | LUTDVFSQ-FH-WH |
| Amperage Rating | 1.5 A |
| Standard & Approvals | UL Listed, CSA, NOM Certified |
| Type | 1-Pole 3-Way Designer |
| Terminal Type | Push-In/Screw |
| Finish | Gloss |
