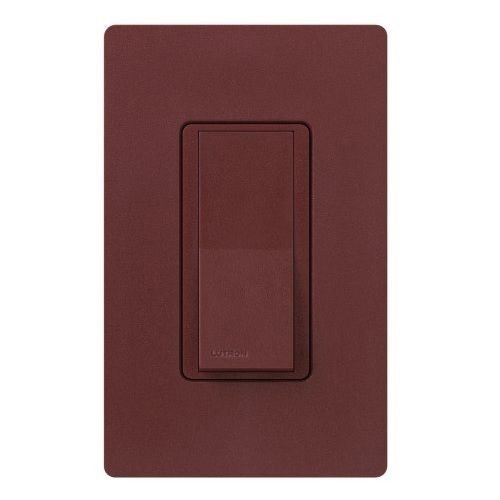

Diva® Satin Colors® SC-4PS-DS Designer General Purpose Mechanical Switch, 15 A at 120/277 VAC, 60 Hz

Selected Diva® Satin Colors® SC-4PS-DS Designer General Purpose Mechanical Switch, 15 A at 120/277 VAC, 60 Hz
Diva® Satin Colors® SC-4PS-DS Designer General Purpose Mechanical Switch, 15 A at 120/277 VAC, 60 Hz

Documents

Short Description

A simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. The paddle switch returns the lights to your favorite level.

Features

  • Matches existing designer style switches
  • Features a large paddle switch and a small slider
  • Power-failure memory
  • Standard RFI suppression
  • Use with any 15 A load
  • Satin finish

Specification

Frequency Rating
60 Hz
Material
Thermoplastic
Mounting
Wall
Operational Mode
4-Way
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=yP4g9tSDud4
Actuator
Paddle
Amperage Rating
15 A
Terminal Type
Screw
Application
For commercial and residential applications
Standard & Approvals
UL 20, UL 1472 Listed, CSA, NOM, ISO 9001 Certified
Color
Desert Stone
Catalog ID
LUTSC-4PS-DS
Type
Designer General Purpose
Switch Function
On/Off
Environmental Conditions
32 to 104 deg F Ambient Temperature, 90% Non-Condensing Relative Humidity
Electrical Rating
15 A at 120/277 VAC
Dimensions
4.69 in H x 2.94 in W x 1.31 in D
