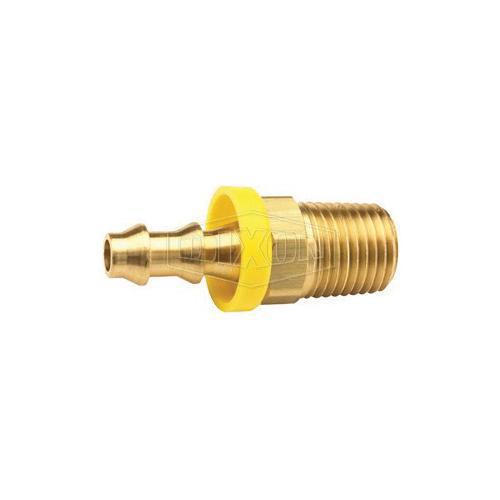

Dixon® 2720404C 272 Hose Barb, 1/4-18 x 1/4 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
Selected Dixon BPN22
Dixon® 2720404C 272 Hose Barb, 1/4-18 x 1/4 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic
SKU: DXN2720404C
Manufacturer Part Number: 2720404C
Documents
Features
- Push-on fittings are intended for use with lok-on (push-on style) hose
- Lock-on fittings will properly grip lok-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
- No hose clamps or ferrules are needed
- Dryseal construction
Specification
| Series | 272 |
|---|---|
| End Style | MNPT x Hose Barb |
| Pressure Rating | 350 psi |
| Nominal Size | 1/4-18 x 1/4 in |
| Hex Size | 9/16 in |
| Length | 1.61 in |
| BarbLength | 0.77 in |
| Fitting Connector Type | Adapter |
| Domestic/Import | Domestic |
| Material | Brass |
| Temperature Rating | -40 to 150 deg F |
| NumberofBarb | 2 |
