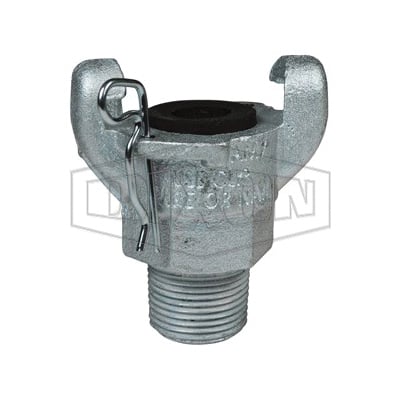

Dixon® AM12 Air King™ Universal Hose End Coupling, 1 in, MNPT, Iron, Domestic
Dixon® AM12 Air King™ Universal Hose End Coupling, 1 in, MNPT, Iron, Domestic
SKU: DXNAM12
Manufacturer Part Number: AM12
UPC: 640025034675
Documents
Features
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Air king meets pressure requirements as specified in A-A-59553 commercial item description superseding mil Spec.WWC-633D
- Supplied with rubber washer, part no AWR4
- Rubber seal
- Never use any air king coupling for steam service!
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- 150 psi at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Specification
| End Style | MNPT |
|---|---|
| Length | 2-7/8 in |
| Series | Air King™ |
| Nominal Size | 1 in |
| Pressure Rating | 150 psi |
| Material | Iron |
| Type | Universal |
| Hex Size | 5/8 in |
| Dimensions | 2-1/2 in W |
| Domestic/Import | Domestic |
