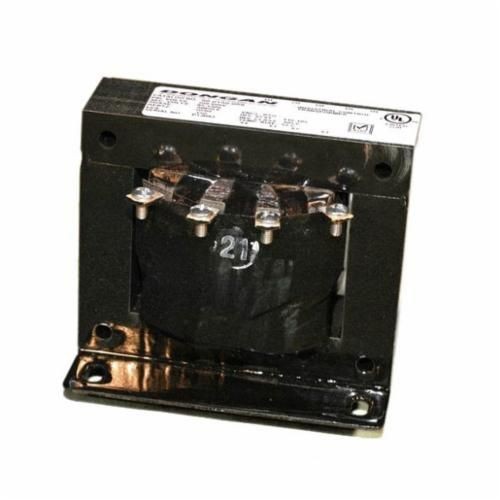

Dongan 50-2000-053 50 Series Industrial Open Style Triple Rated Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 2000 VA Power Rating, 50/60 Hz, 1 ph Phase
Dongan 50-2000-053 50 Series Industrial Open Style Triple Rated Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 2000 VA Power Rating, 50/60 Hz, 1 ph Phase
SKU: DON50-2000-053
Manufacturer Part Number: 50-2000-053
UPC: 782490502003
Short Description
Features
- Copper windings
- Rugged coil mounted screw terminals
- Primary fuse blocks and secondary fuse holders available
- Combination screw heads for ease of installation
- Non-standard designs are available by consulting the factory or your dongan representative
- BR-734-6 primary fuse kit, 265 B secondary fuse kit, 9 at 120 V secondary fuse size
- Regulation characteristics equal or exceed the highest industry standards
- 5 x 5.31 in bolt hole distance, 0.312 x 0.625 in bolt hole
- 115 deg C temperature rise at a maximum ambient of 40 deg C
- 6.25/3.13 A (primary), 16.67 A (secondary)
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Insulation | 180 deg C |
| Maximum Amperage Rating | 6.25/3.13/16.67 A |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | DON50-2000-053 |
| Connection Type | Screw |
| Dimensions | 5.62 in H x 6.38 in W x 7.62 in D |
| Enclosure Type | Open |
| Phase | 1 |
| Power Rating | 2000 VA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120 VAC |
| Series | 50 |
| Temperature Rating | 115 deg C |
| Type | Triple Rated |
| Standard & Approvals | UL E3210 Listed, cUL Listed, CSA LR560 Certified, NEMA ST-1 Rated, ANSI Approved, RoHS Complaint |
