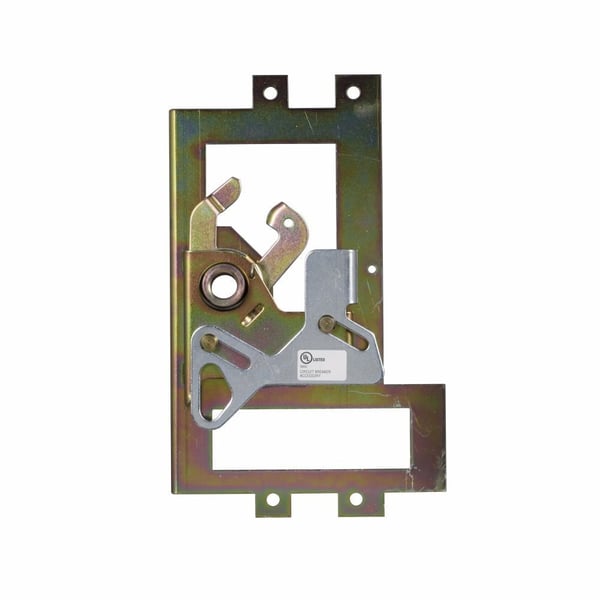

EATON 5092A62G02 Operating Mechanism, NEMA 1 NEMA Rating, Variable Depth Handle Handle/Operation, For Use With KD Frame Molded Case Circuit Breaker

Selected 5092A62G02EATON 5092A62G02 Operating Mechanism, NEMA 1 NEMA Rating, Variable Depth Handle Handle/Operation, For Use With KD Frame Molded Case Circuit Breaker
5092A62G02EATON 5092A62G02 Operating Mechanism, NEMA 1 NEMA Rating, Variable Depth Handle Handle/Operation, For Use With KD Frame Molded Case Circuit Breaker

Documents

Short Description

Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

Features

  • General purpose variable depth handle mechanisms are suitable for use with type 1 fabricated enclosures
  • They are designed for use with breakers or disconnect switches when used in deep enclosures
  • Required for a standard application are a padlockable operating handle, a shaft and a mechanism
  • Two variable depth shafts are offered to better cover the wide range of depths of various enclosures these are referred to in the table as the standard and the long shaft
  • No internal lock-off style

Specification

Suitable For Use With
KD Frame Molded Case Circuit Breaker
Application
Circuit Protection Applications
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=PY52j05p7to
Catalog ID
C-H5092A62G02
Dimensions
9.4 x 5.9 x 3.6 in
Handle/Operation
Variable Depth Handle
NEMA Rating
NEMA 1
