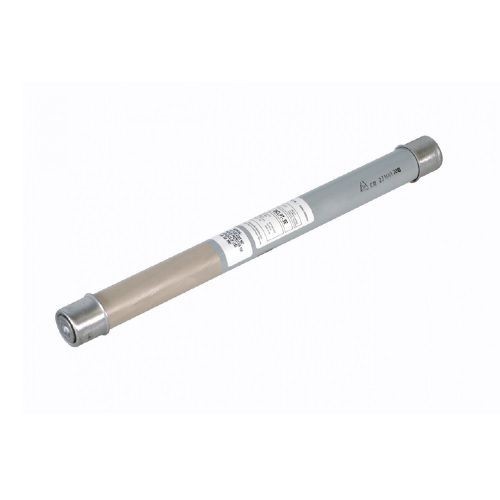

EATON 5CLPT-1E-B 1-Barrel General Purpose Long Length Current Limiting Fuse, 1 A, 5.5 kV, 80 kA Interrupt, Class: E

Selected EATON 5CLPT-1E-B 1-Barrel General Purpose Long Length Current Limiting Fuse, 1 A, 5.5 kV, 80 kA Interrupt, Class: E
EATON 5CLPT-1E-B 1-Barrel General Purpose Long Length Current Limiting Fuse, 1 A, 5.5 kV, 80 kA Interrupt, Class: E

Short Description

EATON CLPT (indicating) and NCLPT (non-indicating) fuses are applied wherever it is necessary to limit the short-circuit currents on control transformer and potential transformer circuits in high capacity systems in industrial installations and commercial buildings. Current ratings from 1/2E to 10E are available at 2.4 kV to 34.5 kV.

Features

  • Quiet safe operation these fuses are designed for silent operation and elimination of flame discharges when the fuse operates
  • Space economy because the fuse is designed to eliminate flame and gas discharges, no exhaust control devices, flame boxes, vents or reinforcing are required
  • Complete protection provided current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electromechanical stresses in the apparatus to be protected
  • Identification of blown fuse indicators protrude from indicating type fuses providing a visual indication of a blown fuse
  • E-rated power
  • Disconnect and non-disconnect mountings, live parts

Specification

Interrupt Rating
80 kA
Material
Glass Resin Casing/Silica Sand Filler
Mounting Type
Clip
Series
CLPT
Type
1-Barrel General Purpose Long Length
Voltage Rating
5.5 kV
Application
PTs and CTs, Power/Distribution and Indoor Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, IEEE C37.41, ANSI Specified
Body Size
6 in L x 1.6 in W
Class
E
Element
Pure Silver
Indicating/Non-Indicating
Indicating
Amperage Rating
1 A
