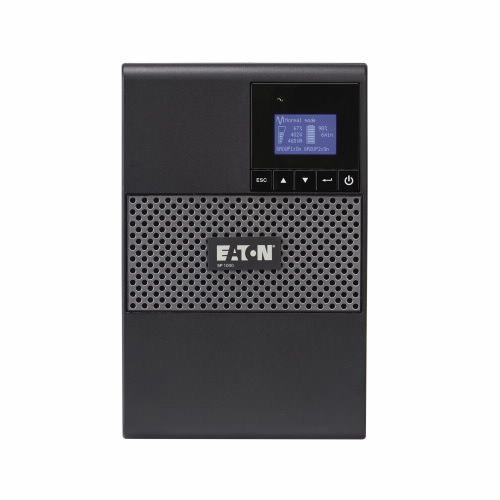

EATON 5P1000 5P Series Uninterruptible Power Supply, 89 to 151 VAC Input, 120 VAC Output, 770 W Power Rating, 5/15 min Backup, 8 Outlets

Selected 5P1000EATON 5P1000 5P Series Uninterruptible Power Supply, 89 to 151 VAC Input, 120 VAC Output, 770 W Power Rating, 5/15 min Backup, 8 Outlets
5P1000EATON 5P1000 5P Series Uninterruptible Power Supply, 89 to 151 VAC Input, 120 VAC Output, 770 W Power Rating, 5/15 min Backup, 8 Outlets

Documents

Short Description

The Eaton 5P UPS delivers reliable backup power in tower and various rackmount form factors for enterprise and distributed IT applications. As the first in the UPS industry to comply with the UL 2900-2-2 cybersecurity standard, Eaton's optional gigabit network card (NETWORK-M2) provides remote monitoring and management for the 5P family of products. When paired with Eaton Intelligent Power Manager (IPM) software, IT professionals can seamlessly manage their connected equipment install base, even in virtualized environments. Some 5P models are also available with long life lithium-ion batteries, which offer reduced maintenance over the life of the system when compared to lead acid versions.

Features

  • Line interactive topology
  • Rear terminal block connector for remote ON-OFF and power off ROO/RPO
  • Upto 97% efficiency
  • RS-232 (RJ45), USB communication
  • 750 kVA power rating
  • USB cable, RS-232 serial cable

Specification

Power Rating
770 W
Series
5P Series
Application
Backup Power and Electronic Power Conversion Applications
Standard & Approvals
ARRA Compliant, BAA Compliant, cUL Listed, FCC Part 15 Subpart B Class A, IEC 62040-2 C1-C2/EN 55024/CISPR22 Class B, RoHS Compliant, UL 1778/497A
Minimum Order Qty
1
Order Interval
1
Backup Time
5/15 min
Battery
Valve Regulated Lead Acid
Catalog ID
EPQ5P1000
Cord Length
6 ft
Dimensions
13.6 in L x 5.9 in W x 9.1 in H
Display Type
LCD/Graphical
Environmental Conditions
0 to 35 deg C Operating Temperature, 0 to 90% Relative Humidity
Frequency Rating
40 to 60 Hz
Input Voltage
89 to 151 VAC
Interface
LCD Graphical Display
Mounting Type
Tower
NEMA Plug Configuration
5-15P
NEMA Receptacle Configuration
(8) 5-15R
Number of Outlets
8
Output Voltage
120 VAC
Phase
1 ph
Includes
Mounting Ears, 5P UPS, User Manual CD, Intelligent Power Software Suite CD, Quick Start Guide, USB Cable and RS-232 Serial Cable
