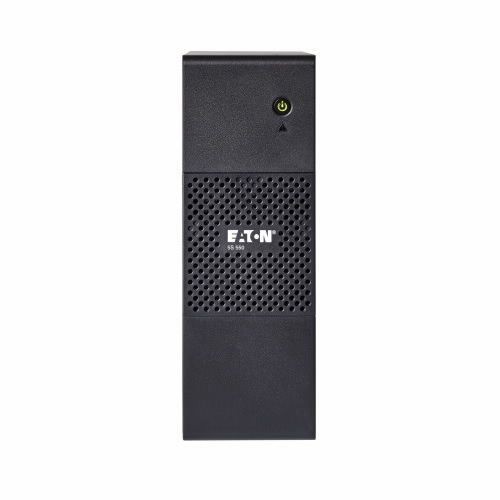

EATON 5S550 Uninterruptible Power Supply, 93 to 138 VAC Input, 120/208 VAC Output, 1080 W
EATON 5S550 Uninterruptible Power Supply, 93 to 138 VAC Input, 120/208 VAC Output, 1080 W
SKU: EPQ5S550
Manufacturer Part Number: 5S550
UPC: 743172043528
Features
- Black color
- Line interactive topology
- >95% efficiency
- 93-138 VAC power cables
- 46 to 70 Hz (50 Hz system), 57 to 70 Hz (60 Hz system) input frequency range without using batteries
- Allows start of UPS without utility power start on battery
- USB HID port as standard, 6 ft USB cable communication ports
- Sealed, maintenance free battery
- Tower configuration
Specification
| Interface | LCD Display |
|---|---|
| Mounting Type | Tower |
| NEMA Plug Configuration | NEMA 5-15P |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | EPQ5S550 |
| Dimensions | 28 in L x 47 in W x 55 in H |
| Environmental Conditions | 0 to 35 deg C Operating Temperature, -15 to 40 deg C Storage Temperature, 0 to 90% Non-Condensing Relative Humidity, <25 dB Audible Noise |
| Phase | 1 |
| Power Rating | 1080 |
| Series | 5S |
| Application | For backup power and electronic power conversion |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 1778/497A/1561/1449, cUL Listed, ISO 9001 |
| Battery | VRLA |
| Output Voltage | 120/208 |
| Input Voltage | 93 to 138 |
| Frequency Rating | 47 to 70, 57 to 70 |
| Includes | User Manual |
| Cord Length | 6 |
