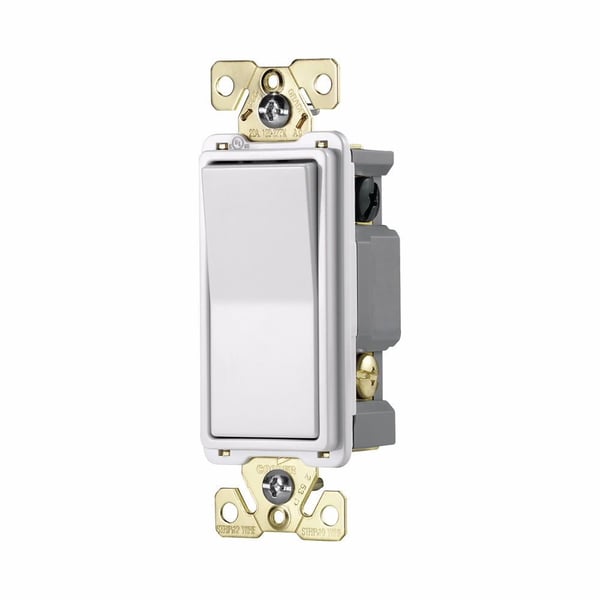

EATON Arrow Hart 7622W-BOX Lighted AC Decorator Switch, 120/277 VAC, 20 A, 1 hp, 2 hp Power Rating
EATON Arrow Hart 7622W-BOX Lighted AC Decorator Switch, 120/277 VAC, 20 A, 1 hp, 2 hp Power Rating
SKU: EAG7622W-BOX
Manufacturer Part Number: 7622W-BOX
UPC: 032664647338
Documents
Features
- Automatic grounding eliminates need for bonding jumper in metal enclosures
- Welded construction provides superior assembly security under heavy use
- Tri-combo head terminal and mounting screws, plus easy access grounding terminal
- Tapered back-wire openings handle multiple sizes and types, up to 10 AWG solid or stranded wire
- Smooth face for ease of cleaning
- Built-in wire stripper
- Stippled line and ground contacts ensure solid contact, ground screw clamp provides secure wiring and reduces installation time
- Ground screw clamp provides secure wiring
- Oversized termination screws
- Polycarbonate paddle/top housing and PVC bottom housing
- Standard rocker switch
Specification
| Power Rating | 1 hp, 2 hp |
|---|---|
| Series | 7600 |
| Terminal Type | Screw |
| Type | Lighted |
| Voltage Rating | 120/277 VAC |
| Application | Commercial, Institutional Buildings, Structures - Industrial Applications |
| Standard & Approvals | cULus Listed, Federal Specification W-S-896-E, RoHS Compliant, UL Listed |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Paddle |
| Amperage Rating | 20 A |
| Catalog ID | EAG7622W-BOX |
| Color | White |
| Contact Rating | 20 A at 120/277 VAC |
| Dimensions | 1.44 in W x 1.18 in D x 3.81 in H |
| Environmental Conditions | -20 to 60 deg C Operating Temperature |
| Material | Polycarbonate/PVC/Thermoplastic |
| Mounting | Wall |
| Number Of Poles | 2 |
| Operating Cycles | 30000 Cycles |
