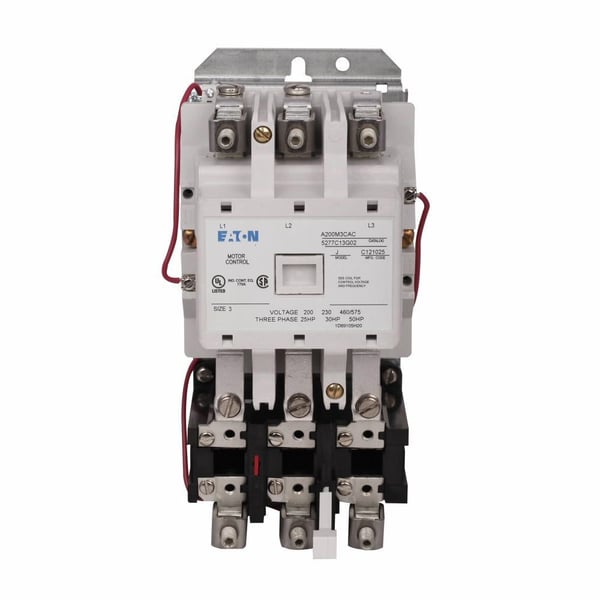

EATON A200M3CACD Freedom A200 Motor Control Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 3 Enclosure
EATON A200M3CACD Freedom A200 Motor Control Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 3 Enclosure
SKU: C-HA200M3CACD
Manufacturer Part Number: A200M3CACD
UPC: 786678232508
Short Description
Features
- Straight through wiring, up-front, out front terminals for ease in installation
- Unique accessory mounting cavities reduce panel space requirements
- Snap-in accessories for application flexibility
- Vertical and horizontal interlocking capability increases application flexibility
- Ambient compensated overload relays available as standard, offering superior motor protection in variable motor/controller environments
- Isolated normally open relay contact available in kit mounting form on type B overload relay
- 25 hp at 208 VAC, 30 hp at 240 VAC, 50 hp at 480 VAC
- Wired for separate control, ambient compensated overload relay with AUTO reset
- Ambient compensated overload relay with AUTO reset
Specification
| Series | Freedom A200 |
|---|---|
| Voltage Rating | 600 VAC |
| Application | Motor and Power Control Equipment Applications |
| Standard & Approvals | UL Listed, CSA Certified |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Action | Non-Reversing |
| Amperage Rating | 90 A |
| Catalog ID | C-HA200M3CACD |
| Coil Voltage | 110/120 VAC |
| Connection Type | Screw Clamp |
| Dimensions | 4.62 in W x 6.75 in D x 9.93 in H |
| Enclosure Type | NEMA 3 |
| Frequency Rating | 50/60 Hz |
| Motor Power | 50 hp |
| Number Of Poles | 3 |
| Operating Temperature | -4 to 140 deg F |
| Overload Relay | Bi-Metal |
