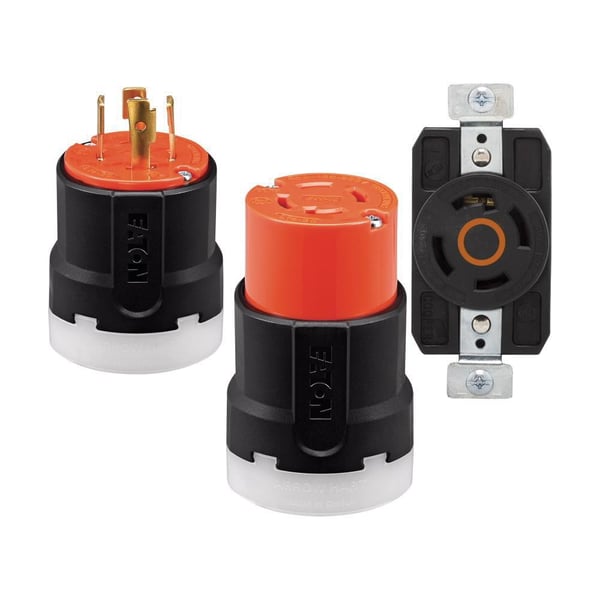

EATON Wiring Devices Arrow Hart AHCL1430P Color Coded Ultra Grip Locking Device Plug, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Black/Orange

Selected IDW IMAGE 8503df37659ff7a166a934a7f50010986e3205ef230f61eea1b486ead50b98e5
IDW IMAGE 8503df37659ff7a166a934a7f50010986e3205ef230f61eea1b486ead50b98e5

Documents

Short Description

Eaton’s Arrow Hart color coded locking devices are an industry-first solution that adds six voltage rating color codes consistent with IEC 60309 standards to locking plugs, connectors, inlets, outlets and receptacles to provide you a quick, clear and easy way to identify your circuit voltage. Available in standard NEMA configurations for 20A and 30A applications, the devices ensure long-lasting, dependable service in the most demanding environments, are built with a contemporary flare and ergonomic design for a comfortable yet secure feel and offer excellent reliability and durability.

Features

  • Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plugs and connectors offer excellent reliability and durability
  • A dual dovetail design provides superior cord grip retention and the grommet allows usage across a wide range of cord diameters
  • Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords

Specification

Voltage Rating
125/250 VAC
Temperature Rating
-40 to 140 deg F
Material
Nylon
Cord Diameter
0.38 to 1.16 in
Grade
Industrial
Dimensions
2.82 in H x 2.3 in W x 2.13 in D
Amperage Rating
30 A
Type
Color Coded Ultra Grip
NEMA Rating
NEMA L14-30
Number Of Poles
3
Number of Wires
3
Terminal Type
Back Wire
Color
Black/Orange
