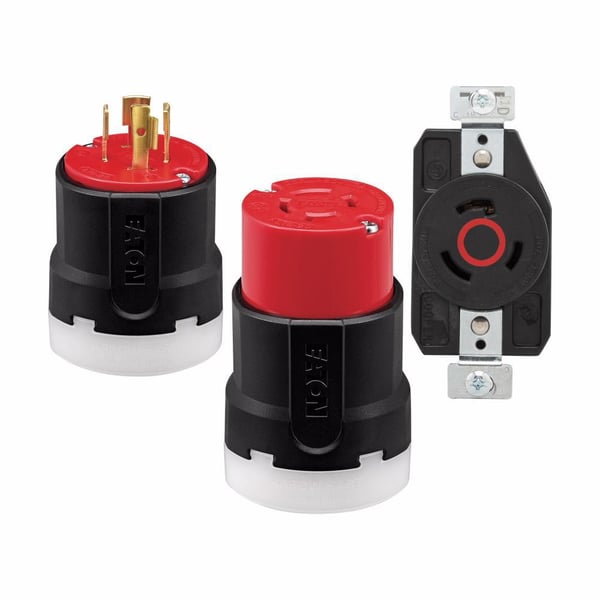

EATON Arrow Hart AHCL1630R Color Coded Single Ultra Grip Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Black/Red

Selected IDW IMAGE 1f7b48d959cbf266f18b1a80937dc27d6e6df2e1246d501baf00b22c0da7972c
IDW IMAGE 1f7b48d959cbf266f18b1a80937dc27d6e6df2e1246d501baf00b22c0da7972c

Documents

Short Description

Eaton’s Arrow Hart color coded locking devices are an industry-first solution that adds six voltage rating color codes consistent with IEC 60309 standards to locking plugs, connectors, inlets, outlets and receptacles to provide you a quick, clear and easy way to identify your circuit voltage. Available in standard NEMA configurations for 20A and 30A applications, the devices ensure long-lasting, dependable service in the most demanding environments, are built with a contemporary flare and ergonomic design for a comfortable yet secure feel and offer excellent reliability and durability.

Features

  • Voltage color coding
  • Rugged glass filled nylon body
  • Clearly marked rating, NEMA configuration and approval listings on receptacle face
  • 1-piece brass contacts offer superior performance and minimal heat rise
  • Back and side wiring terminal clamps for easy, secure wiring

Specification

NEMA Rating
L16-30
Grade
Industrial
Type
Color Coded Single Ultra Grip
Number of Wires
4
Amperage Rating
30 A
Material
Glass Filled Nylon
Voltage Rating
480 VAC
Number Of Poles
3
Terminal Type
Back/Side Wire Clamp
Cord Diameter
0.375 to 1.156 in
Color
Black/Red
Temperature Rating
-40 to 158 deg F
Dimensions
1.63 in L x 1.06 in W x 3.64 in H
