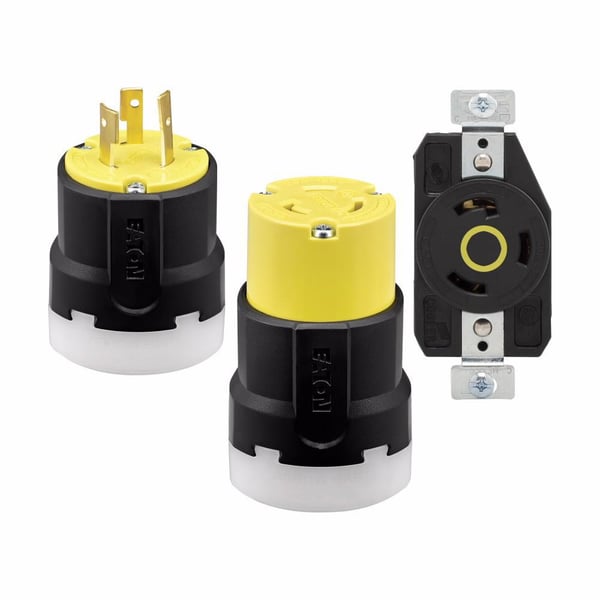

EATON Wiring Devices Arrow Hart AHCL520P Color Coded Ultra Grip Locking Device Plug, 125 VAC, 20 A, 2 Poles, 2 Wires, Black/Yellow

Selected IDW IMAGE 9f201252a6447789cad7b53cba00373a59a74654db77fd5c6a582340524b73f3
IDW IMAGE 9f201252a6447789cad7b53cba00373a59a74654db77fd5c6a582340524b73f3

Documents

Short Description

Eaton’s Arrow Hart color coded locking devices are an industry-first solution that adds six voltage rating color codes consistent with IEC 60309 standards to locking plugs, connectors, inlets, outlets and receptacles to provide you a quick, clear and easy way to identify your circuit voltage. Available in standard NEMA configurations for 20A and 30A applications, the devices ensure long-lasting, dependable service in the most demanding environments, are built with a contemporary flare and ergonomic design for a comfortable yet secure feel and offer excellent reliability and durability.

Features

  • Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plugs and connectors offer excellent reliability and durability
  • A dual dovetail design provides superior cord grip retention and the grommet allows usage across a wide range of cord diameters
  • Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords

Specification

Temperature Rating
-40 to 140 deg F
Grade
Industrial
Amperage Rating
20 A
Voltage Rating
125 VAC
Color
Black/Yellow
NEMA Rating
NEMA L5-20
Dimensions
2.69 in H x 2.1 in W x 2.23 in D
Number of Wires
2
Cord Diameter
0.38 to 1 in
Type
Color Coded Ultra Grip
Number Of Poles
2
Material
Nylon
Terminal Type
Back Wire
