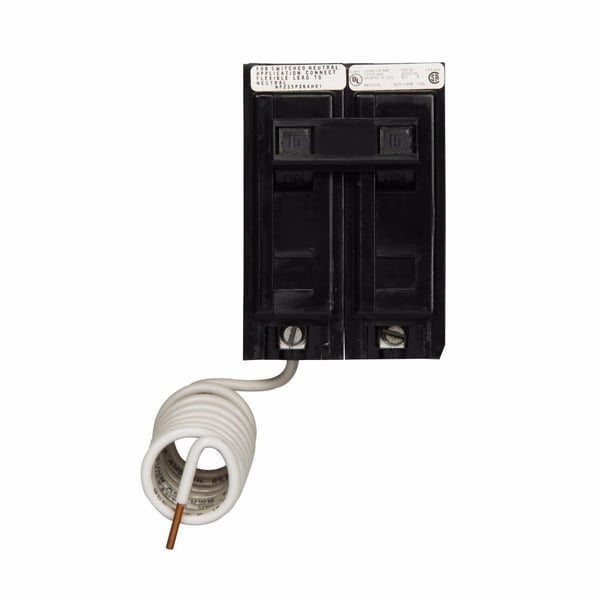

EATON QuickLag® BAB2015S1 Type BAB Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip

Selected BAB2015S1EATON QuickLag® BAB2015S1 Type BAB Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip
BAB2015S1EATON QuickLag® BAB2015S1 Type BAB Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip

Documents

Short Description

QuickLag® is the largest and most complete family of industrial thermal magnetic miniature circuit breakers. They provide the exclusive features of steel frame calibration and arc chutes in every pole. QuickLag® circuit breakers are provided in ranges from 5 to 125 A continuous in single, two and three pole configurations with interrupting capacities from 10 to 65 kA. QuickLag® circuit breakers have been series rated up to 200 kA in conjunction with larger Westinghouse/Cutler-Hammer current limiting circuit breakers. Each QuickLag® rating is available for plug-in (type P), bolt-on (type B) and cable to cable connections (type C) for line/load feed applications. They are also available with one of the industries widest selection of accessories, including shunt trip and can be custom modified to meet special application requirements.

Features

  • 24/48 VDC shunt trip

Specification

Frequency Rating
60 Hz
Interrupt Rating
10 kA
Number Of Poles
2
Temperature Rating
40 deg C
Wire Size
14 to 4 AWG
Standard & Approvals
CSA Certified, UL 489
Amperage Rating
15 A
Voltage Rating
120/240 VAC
Phase
1 ph
Application
Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Datacenters, IT Space, CI and Hyper Converged and Industrial Applications
Trip Type
Non-Interchangeable/Shunt/Thermal Magnetic
Type
Type BAB
Mounting Type
Bolted-On
Connection Type
Extended Tang Line Terminal
Dimensions
2 in W x 2.38 in D x 2.94 in H
