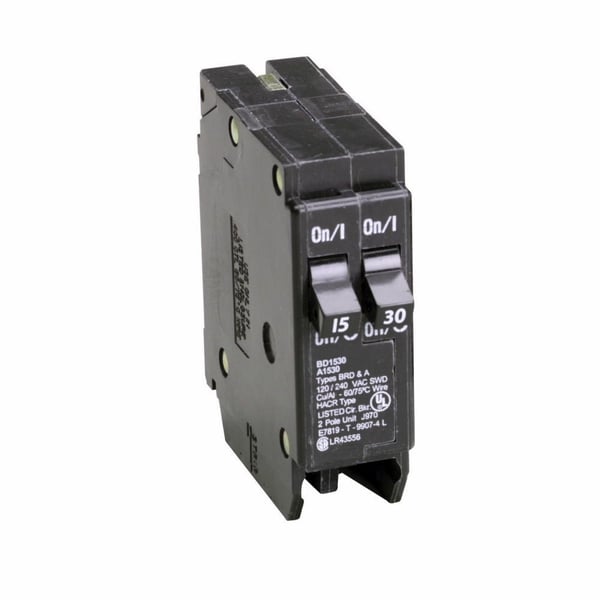

EATON BD1530 Type BD CTL Duplex Circuit Breaker, 120 VAC, 15 to 30 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
EATON BD1530 Type BD CTL Duplex Circuit Breaker, 120 VAC, 15 to 30 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
SKU: C-HBD1530
Manufacturer Part Number: BD1530
UPC: 786676369152
Documents
Features
- All type BD duplex and BQ quadplex circuit breakers carry listing for HACR applications
- Rejection tab feature
- All 15 and 20 A 1-pole are switch duty rated
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Mounting Type | Plug-On |
| Number Of Poles | 1 |
| Phase | 1 ph |
| Temperature Rating | 60 to 75 deg C |
| Trip Type | Thermal/Magnetic |
| Type | Type BD CTL Duplex |
| Voltage Rating | 120 VAC |
| Wire Size | 14 to 4 AWG |
| Application | Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Circuit Protection and Type BR Load Center Applications |
| Standard & Approvals | Federal Specification W-C-375, HACR Rated, UL 489 |
| Amperage Rating | 15 to 30 A |
| Dimensions | 3 in L x 1 in W x 3 in H |
| Includes | Rejection Tab |
