EATON BJ3125 Type BJ Main Circuit Breaker, 240 VAC, 125 A, 10 kAIC Interrupt, 3 Poles

Selected EATON BJ3225

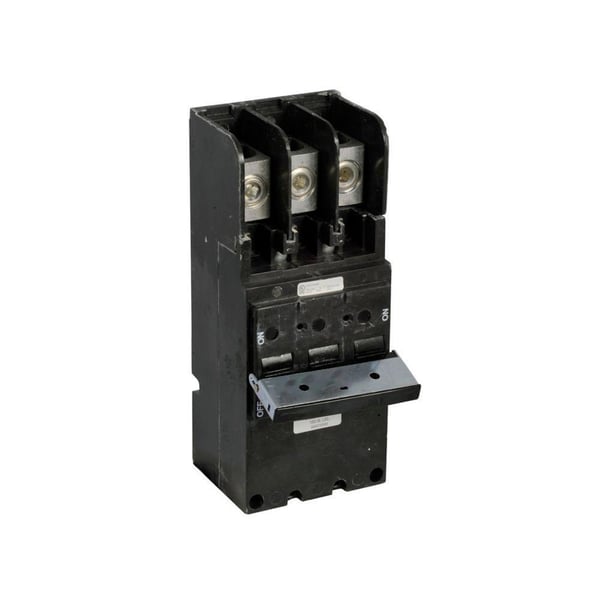

EATON BJ3225

Documents

Short Description

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Features

  • 2 AWG to 300 kcmil copper aluminum at 60 or 75 deg C wire range
  • Requires at least a 150 A load center breaker uses two 1 in pole spaces and two 1 in pole spaces on right side of load center

Specification

Interrupt Rating
10 kAIC
Mounting Type
Plug-On
Wire Size
2 AWG to 300 kcmil Copper/Aluminum
Amperage Rating
125 A
Phase
3
Voltage Rating
240 VAC
Type
Type BJ
Number Of Poles
3
Temperature Rating
60 to 75 deg C
Dimensions
8 in L x 3-1/2 in W x 3-1/2 in H
