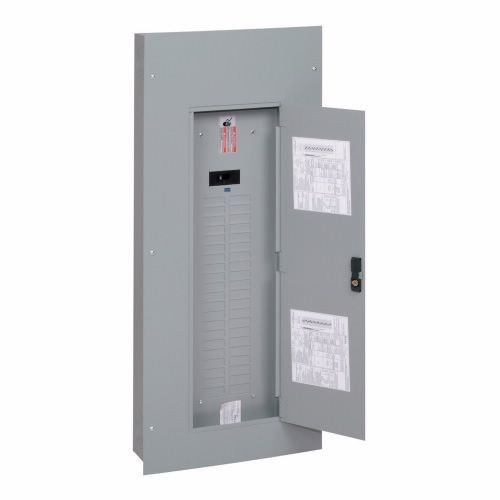

EATON BR4242PV200 Type BR 3-Wire Photovoltaic Rated Solar Ready Load Center, 120/240 VAC, 70 A, 35 kA Interrupt

Selected BR4242PV200EATON BR4242PV200 Type BR 3-Wire Photovoltaic Rated Solar Ready Load Center, 120/240 VAC, 70 A, 35 kA Interrupt
BR4242PV200EATON BR4242PV200 Type BR 3-Wire Photovoltaic Rated Solar Ready Load Center, 120/240 VAC, 70 A, 35 kA Interrupt

Short Description

EATON solar power centers combine both utility power and solar photovoltaic (PV) power into one enclosure. Solar power centers can be applied as a component of a complete PV electrical system. EATON offers the industry's most complete line of balance of system (BOS) products, along with a wide variety of configurations, including load centers and meter breakers. The solar power centers feature industry exclusive, factory installed permanent markings, which help to ensure National Electrical Code® (NEC®) compliance. Required by the NEC®, these markings enable quick and easy identification of product ratings and location of the parallel energy source disconnect. Prior t installation, contact your local utility to confirm approval.

Features

  • Up to 225 A rated copper bussing maximizes solar source up to 70 A for standard units
  • Main breaker and PV backed main are located at opposite ends of the distribution panel
  • Overhead/underground feed applications
  • Padlocking provisions
  • Top or bottom exit of load wiring

Specification

Interrupt Rating
35 kA
Mounting Type
Combination
Number of Circuits
42
Number of Spaces
42
Phase
1 ph
Type
Type BR 3-Wire Photovoltaic Rated
Voltage Rating
120/240 VAC
Application
Generation - Renewable Energy - Alternative Energy, Conventional Energy, Datacenters, IT Space - CI and Hyper Converged, Marine Vessels and Equipment
Standard & Approvals
EUSERC/West Coast, NEC (2008) Section 690.64(B)/(2011) Section 705.12(D), Non-EUSERC, UL Listed
Amperage Rating
70 A
Dimensions
3.88 in L x 14.31 in W x 45 in H
Bus Material
Copper
Bus Rating
225 A
Circuit Breaker Type
200 A Type CSR
Cover Type
Flush/Surface
Enclosure Type
NEMA 1
Feed Type
Bottom/Top
Includes
Cover
