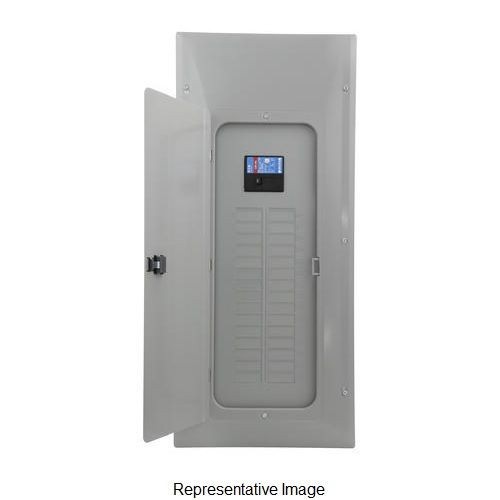

EATON BRP30B200V25 1-Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt

Selected EATON BRP30B200V25 1-Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
EATON BRP30B200V25 1-Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt

Documents

Short Description

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Features

  • Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings
  • Straight-in wiring saves labor and material
  • 1-panel for either top or bottom applications
  • 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
  • Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
  • Standard tin plated aluminum bus, excellent conductivity and corrosion resistance
  • Tangential center knockout, easier installation for conduit applications
  • Commercial grade main breaker, 25 kAIC series rated main breaker for superior protection
  • Neutral bus, easily removable for sub-panel applications
  • Bonding Z-strap, provides easy field conversion for service entrance applications
  • Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
  • 6 to 2/0 AWG copper/aluminum wire size

Specification

Housing Material
Galvanized Steel
Interrupt Rating
22 kA
Mounting Type
Plug-On
Number of Circuits
60
Number Of Poles
1
Number of Spaces
30
Type
1-Phase
Voltage Rating
120/240 VAC
Wire Size
6 to 2/0 AWG
Wiring Configuration
3-Wire
Application
Indoor, Residential and Light Commercial Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 50, UL 67, UL File No. E52977
Amperage Rating
200 A
Dimensions
3.88 in L x 14.31 in W x 34 in H
Breaker Type
BR/CSR
Enclosure Box Size
X6
Enclosure Type
NEMA 1
Includes
Cover
