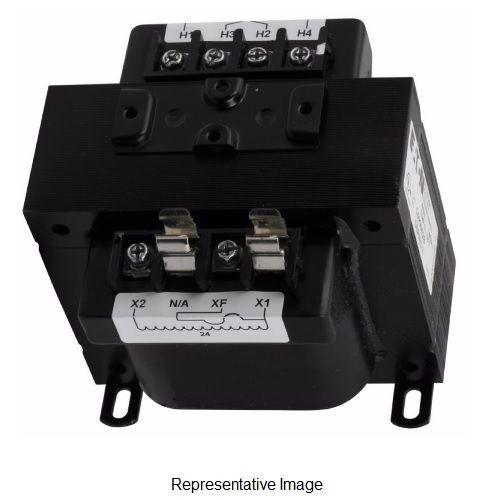

EATON C0200E1B Type MTE Control Transformer, 120/240 V Primary, 24 V Secondary, 200 VA Power Rating, 50/60 Hz, 1 ph Phase

Selected EATON C0200E1B Type MTE Control Transformer, 120/240 V Primary, 24 V Secondary, 200 VA Power Rating, 50/60 Hz, 1 ph Phase
EATON C0200E1B Type MTE Control Transformer, 120/240 V Primary, 24 V Secondary, 200 VA Power Rating, 50/60 Hz, 1 ph Phase

Documents

Short Description

Control transformers provide stepped-down voltages to machine tool control devices, enabling control circuits to be isolated from all power and lighting circuits. This allows the use of grounded or ungrounded circuits that are independent of the power or lighting grounds; thus, greater safety is afforded the operator. The control transformer line is particularly adaptable on applications where compact construction is demanded.

Features

  • Epoxy encapsulated coil design
  • Laminations of high quality silicon steel to minimize core losses and optimize performance
  • Copper magnet wire for high quality, efficient operation
  • Secondary fuse clips where applicable
  • Optional primary fusing
  • Performance meets/exceeds requirements of ANSI/NEMA ST-1
  • Regulation exceeds ANSI/NEMA requirements for all ratings
  • Molded-in terminals for maximum durability

Specification

Frequency Rating
50/60 Hz
Insulation
130 deg C
Phase
1
Power Rating
200 VA
Secondary Voltage
24 V
Temperature Rating
55 deg C
Type
Type MTE
Application
Industrial Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA Certified, UL 5085, UL/cUL E46323, UL 702X, IEC 61558
Primary Voltage
120 x 240 V
Connection Type
Molded-In
Dimensions
4.016 in L x 4.488 in W x 3.819 in H
