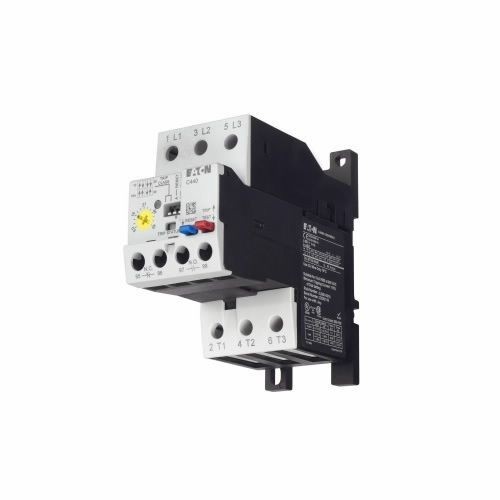

Cutler-Hammer C440A1A045SF2 Freedom Class 10/20/30 Electronic Standard Overload Relay, 9 to 45 A

Short Description

Eaton new solid state overload relay (SSOL) is the most compact, high featured, economical product in its class. designed on a global platform, the new SSOL covers the entire power control spectrum including NEMA, IEC and DP contactors. the NEMA and DP versions are offered with the C440 designation while the IEC offering includes the XTOE version. the electronic design provides reliable, accurate and value driven protection and communications capabilities in a single compact device. it is the flexible choice for any application requiring easy to use, reliable protection.

Features

  • Reliable, accurate, solid state motor protection
  • Easy to select, install and maintain
  • Compact size and flexible, intelligent design
  • Selectable auto/manual reset after trip
  • 45 mm frame

Specification

Mounting Type
Surface
Minimum Order Qty
1
Order Interval
1
Amperage Rating
9 to 45 A
Catalog ID
C-HC440A1A045SF2
Dimensions
7-1/2 in L x 3 in W x 6-1/2 in H
Enclosure Type
NEMA 2
Series
C440 Freedom
Type
Class 10/20/30 Electronic Standard
Application
Motor and Power Control Equipment Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 1203, CSA C22.2 No. 30, NEC Certified, CEC Compliant, CE Marked
