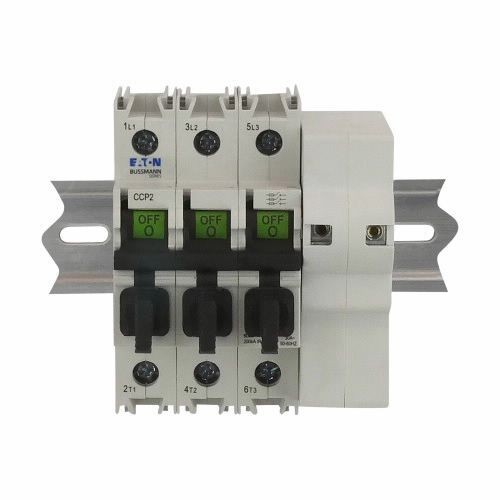

EATON CCP2S-3-30CC Right Compact Circuit Protector Disconnect Switch, 600 VAC/125 VDC, 30 A, 3 Poles, Class CC Fuse, 18 to 4 AWG Wire

Selected EATON CCP2S-3-30CC Right Compact Circuit Protector Disconnect Switch, 600 VAC/125 VDC, 30 A, 3 Poles, Class CC Fuse, 18 to 4 AWG Wire
EATON CCP2S-3-30CC Right Compact Circuit Protector Disconnect Switch, 600 VAC/125 VDC, 30 A, 3 Poles, Class CC Fuse, 18 to 4 AWG Wire

Short Description

The revolutionary next generation Bussmann® series Compact Circuit Protector fused disconnect switch is 3/5 the footprint of a traditional fusible switch and provides up to a high 200 kA Short-Circuit Current Rating (SCCR) to help improve panel and assembly SCCR.

Features

  • Extremely compact (118 mm W per pole) design
  • High SCCR up to 200 kA (UL class CC) and 120 kA (IEC)
  • Disconnect rated to provide means for load isolation

Specification

Fuse Size
10 x 38 mm
Fuse Type
Class CC
Height
3.7 in
Number Of Poles
3
Operator
Rotary
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Catalog ID
BUSCCP2S-3-30CC
Depth
1.9 in
Type
Right
Voltage Rating
600 VAC/125 VDC
Width
0.3 in
Wire Size
18 to 4 AWG
Wire Type
Aluminum/Copper
Application
Suitable for global installations
Standard & Approvals
ARRA Compliant, BAA Compliant, cULus Listed, IEC Standard, RoHS Compliant, UL 98
