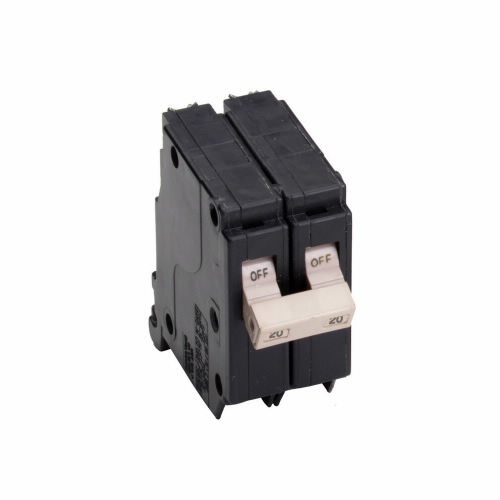

EATON CH220 Type CH Standard Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Poles

Selected IDW IMAGE bb60572f0a7ed99bfa8d2483c47c0a91af950a8b0f530e83f44971c80371fbe6
IDW IMAGE bb60572f0a7ed99bfa8d2483c47c0a91af950a8b0f530e83f44971c80371fbe6

Documents

Short Description

Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design. Type CH circuit breakers trip to the off position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with On-Off indication and ampere rating of the breaker.

Features

  • Common trip requires one 3/4 in space
  • Switching duty rated
  • For 2-pole circuit breakers carry listing for HACR application

Specification

Amperage Rating
20 A
Number Of Poles
2
Mounting Type
Plug-On
Interrupt Rating
10 kA
Temperature Rating
60 to 75 deg C
Enclosure Type
NEMA 1/3R
Phase
1
Dimensions
3 in L x 1-1/2 in W x 3-1/2 in H
Voltage Rating
120/240 V AC
Wire Size
14 to 8 AWG, 14 to 10 AWG
Type
Type CH Standard
