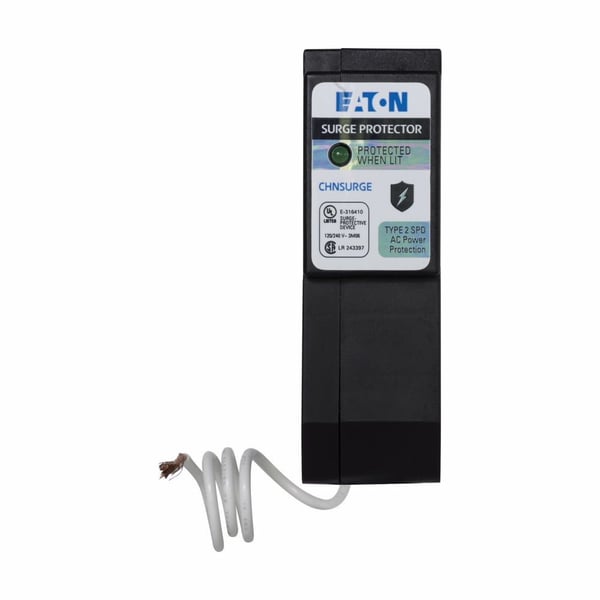

EATON CHNSURGE Type CH Surge Protective Device, 50/60 Hz, 2 Poles, 10 kA SCCR

Selected CHNSURGEEATON CHNSURGE Type CH Surge Protective Device, 50/60 Hz, 2 Poles, 10 kA SCCR
CHNSURGEEATON CHNSURGE Type CH Surge Protective Device, 50/60 Hz, 2 Poles, 10 kA SCCR

Documents

Short Description

Eaton offers a complete line of UL 1449 4th edition listed surge protection products providing protection for all of your sensitive electronics and appliances in residential and light commercial applications.

Specification

Frequency Rating
50/60 Hz
Modes of Protection
150 V L-N/300 V L-L
Nominal Discharge Current
3 kA
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Catalog ID
C-HCHNSURGE
Clamping Voltage
600 V
Dimensions
3.5 in L x 6.1 in W x 2.4 in H
Peak Surge Current
18 kA
Short Circuit Current Rating
10 kA
Type
Type CH
Application
Residential Buildings and Facilities
Standard & Approvals
cUL Listed, UL 1449
