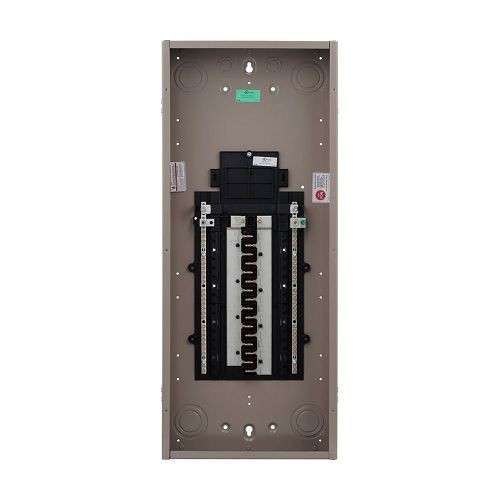

EATON CHP32N225X6 1-Phase Convertible Loadcenter, 120/240 VAC, 225 A, 1 Pole, 25 kA Interrupt

Selected CHP32N225X6EATON CHP32N225X6 1-Phase Convertible Loadcenter, 120/240 VAC, 225 A, 1 Pole, 25 kA Interrupt
CHP32N225X6EATON CHP32N225X6 1-Phase Convertible Loadcenter, 120/240 VAC, 225 A, 1 Pole, 25 kA Interrupt

Short Description

Load centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Features

  • Quicker, easier and cleaner than the competition
  • The CH plug-on neutral Portfolio offers a unique design that offers improved safety, ease of installation and leaves the end result with a clean and professional look and feel
  • Convertible main lug
  • NEMA 1 indoor with no cover (to be ordered separately)

Specification

Type
1-Phase
Voltage Rating
120/240 VAC
Wiring Configuration
3-Wire
Application
Residential Buildings Applications
Standard & Approvals
UL 50/67/E8741
Minimum Order Qty
1
Order Interval
1
Amperage Rating
225 A
Enclosure Type
NEMA 1
Interrupt Rating
25 kA
Number of Circuits
64
Number Of Poles
1
Number of Spaces
32
Housing Material
16 ga Sheet Steel
Enclosure Box Size
X6
Dimensions
34.12 in L x 14.31 in W x 3.88 in H
Catalog ID
C-HCHP32N225X6
Bus Rating
225 A
Breaker Type
CH
Breaker Mounting
Plug-On Neutral
Video
https://www.youtube.com/watch?v=1Z5-U-A4frU
