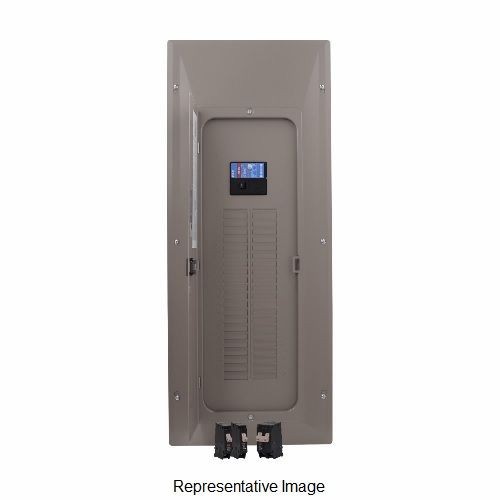

EATON CHP42B200V29 1-Phase Main Breaker Load Center, 120/240 VAC, 200 A, 84 Poles, 25 kA Interrupt

Selected EATON CHP42B200V29 1-Phase Main Breaker Load Center, 120/240 VAC, 200 A, 84 Poles, 25 kA Interrupt
EATON CHP42B200V29 1-Phase Main Breaker Load Center, 120/240 VAC, 200 A, 84 Poles, 25 kA Interrupt

Documents

Short Description

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Features

  • Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
  • Straight-in wiring saves labor and material
  • 1-panel for either top or bottom applications
  • 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
  • 1-piece silver flashed copper bus, provides superior conductivity, corrosion resistance and durability
  • Drywall marking on enclosure, indicates proper mounting depth for flush applications
  • Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
  • Tangential center knockout, easier installation for conduit applications
  • Neutral bus, easily removable for sub-panel applications
  • Bonding Z-strap, provides easy field conversion for service entrance applications
  • Twin neutral bars, minimum 150% neutral capacity

Specification

Housing Material
Sheet Steel
Interrupt Rating
25 kA
Mounting Type
Plug-On
Number of Circuits
84
Number Of Poles
84
Number of Spaces
42
Type
1-Phase
Voltage Rating
120/240 VAC
Wire Size
6 to 1/0 AWG
Wiring Configuration
3-Wire
Application
Residential Loadcenters and Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 50, UL 67, UL File No. E8741
Amperage Rating
200 A
Dimensions
38 in L x 15.31 in W x 4.1 in H
Breaker Type
CH/CSR
Enclosure Box Size
X7
Enclosure Type
NEMA 1
Includes
Cover
