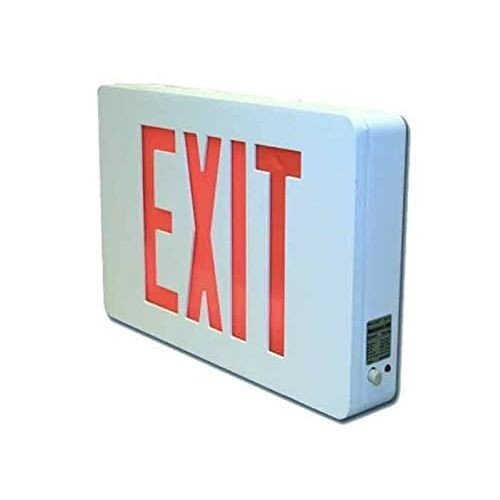

Sure-Lites CX71WHSD CX7 Dual Voltage Single Face Exit Sign, LED Lamp, 120/277 VAC, White Baked Enamel Housing, EXIT Legend

Selected Sure-Lites CX71WHSD CX7 Dual Voltage Single Face Exit Sign, LED Lamp, 120/277 VAC, White Baked Enamel Housing, EXIT Legend
Sure-Lites CX71WHSD CX7 Dual Voltage Single Face Exit Sign, LED Lamp, 120/277 VAC, White Baked Enamel Housing, EXIT Legend

Documents

Short Description

The CX series LED exit is a die cast aluminum unit suitable for architectural applications. With the new advanced standard features and industry leading innovations, they are now the most universal, energy friendly, easiest-to-stock-and-install and safest exits in their class.

Features

  • LED lamping
  • Universal pattern knockouts on rear of housing for direct mounting
  • Knockout chevrons for quick conversion to signs
  • Field selected red and green sign capability standard on all units (units shipped red, field convert to green with supplied parts)
  • EZ Key patented external battery disconnect feature prevents unnecessary battery drainage, saves on installation time
  • Solid state voltage limited charger
  • Brownout circuit
  • Low-Voltage disconnect
  • Test switch/power indicator light
  • Standard 24 hr recharge time
  • Eagle Eye™ self-diagnostic system
  • Red and green letters
  • Dual voltage input 120/277 VAC at 60Hz

Specification

Housing Finish
White
Housing Material
Die Cast Aluminum
Lamp Type
LED
Lamp Wattage
0.98 to 1.09 W
Legend
EXIT
Mounting Type
Surface
Number of Lamps
2
Voltage Rating
120/277 VAC
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 924, NEC Certified, OSHA Compliant, NFPA 101
Amperage Rating
0.07 A
Includes
Canopy
Dimensions
13-1/2 in L x 8-1/2 in W x 2-1/4 in H
Application
Lighting Commercial, Architectural and Damp Location Applications
Type
Single Face
Series
CX7
Power Source
Self-Powered Battery
