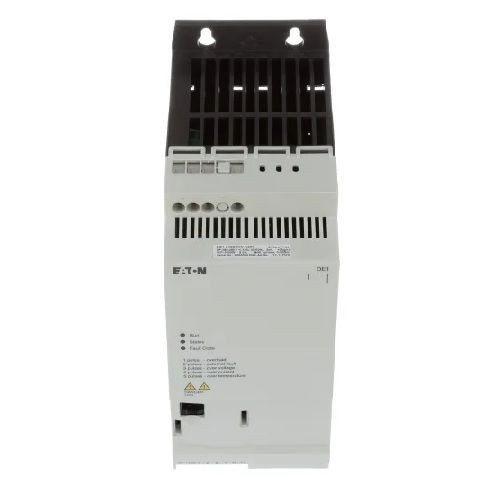

EATON DE1-348D5NN-N20N PowerXL™ DE1 Economy Variable Speed Starter, 4 Poles, NEMA 0/IP20 Enclosure

Selected EATON DE1-348D5NN-N20N PowerXL™ DE1 Economy Variable Speed Starter, 4 Poles, NEMA 0/IP20 Enclosure
EATON DE1-348D5NN-N20N PowerXL™ DE1 Economy Variable Speed Starter, 4 Poles, NEMA 0/IP20 Enclosure

Documents

Short Description

Beyond the out of box commissioning that eliminates the need for parameterization, the user also has the option of using the plug-in DXE-EXT-SET Configuration module to adjust the default settings of key parameters such as ramp time, motor protection and control terminal function to fit the current application. All that is needed is a screwdriver. Furthermore the DE1 naturally also offers the opportunity to carry out the parameterization using the external remote device with LED display, which is part of the PowerXL™ product portfolio. Furthermore, the drives connect software also keeps the new variable speed starter easy to use, just like it does for the entire PowerXL™ family. The software allows DE1 users the parameterization or readout via laptop and to copy parameters from one drive to another with the parameter copy stick.

Features

  • Reduced starting current at full torque
  • Constant speed motors where the required frequency does not correspond to the line frequency
  • No thermal overload at a high frequency of stars

Specification

Frequency Rating
50/60 Hz
Number Of Poles
4
Phase
3
Voltage Rating
480 VAC
Wattage
4 kW
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, cULus Listed, CE Marked, EAC Certified, UKRSekpro Compliant, IEC 61800-5-1, EN 61800-3, C-Tick Approved, Gost-R Certified
Amperage Rating
8.5 A
Enclosure Type
NEMA 0/IP20
Series
PowerXL™ DE1 Economy
Operating Temperature
-10 to 60 deg C
Motor Power
5 hp
Dimensions
9.09 in L x 6.65 in W x 3.54 in H
