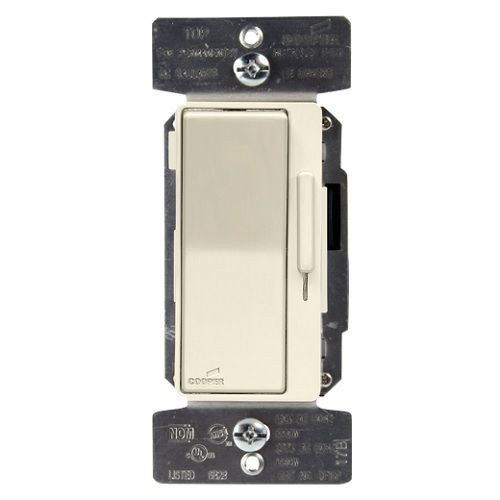

Cooper Wiring DF10P-C2 3-Way Dimmer, 120/277 VAC, Ivory/Light Almond/White

Selected DF10P-C2Cooper Wiring DF10P-C2 3-Way Dimmer, 120/277 VAC, Ivory/Light Almond/White
DF10P-C2Cooper Wiring DF10P-C2 3-Way Dimmer, 120/277 VAC, Ivory/Light Almond/White

Documents

Short Description

The Cooper Wiring Devices DEVINE, 0-10V Dimmer provides full-range classic linear slide dimming for 0-10 Volt compatible dimmable light sources. These units are ideal for residential and light commercial applications and are compatible with Cooper Wiring Devices decorator style devices and wallplates. Units feature a preset ON-OFF in switch that automatically returns controlled light(s) to a preset level without disturbing the brightness level. The device is designed for both Single-Pole (one-location) and 3-Way (multi-location) applications.

Features

  • Preset feature allows user to return to previous light level when turning lights ON
  • Integrated full slide control for easy, precise operation
  • Neutral is not required for installation of device
  • Adjustable high-level trim setting for optimal lamp compatibility
  • Face plate is removable to allow for color changes
  • Electrostatic discharge protection
  • Compatible with any decorator wallplate or screwless decorator wallplate
  • Compatible with dimmable LED and fluorescent 0-10 V ballasts
  • 60 Hz
  • Fluorescent/LED lamp

Specification

Lamp Type
Fluorescent
Material
Polycarbonate
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Catalog ID
EAGDF10P-C2
Color
Ivory/Light Almond/White
Control
Preset Slide
Dimensions
3.81 in H x 1.8 in W x 1.3 in D
Power Rating
1200/1660 W
Temperature Rating
-4 to 158 deg F
Terminal Type
Back and Side Wire
Type
3-Way
Voltage Rating
120/277 VAC
Standard & Approvals
cULus Listed, UL 1472, NOM Certified
