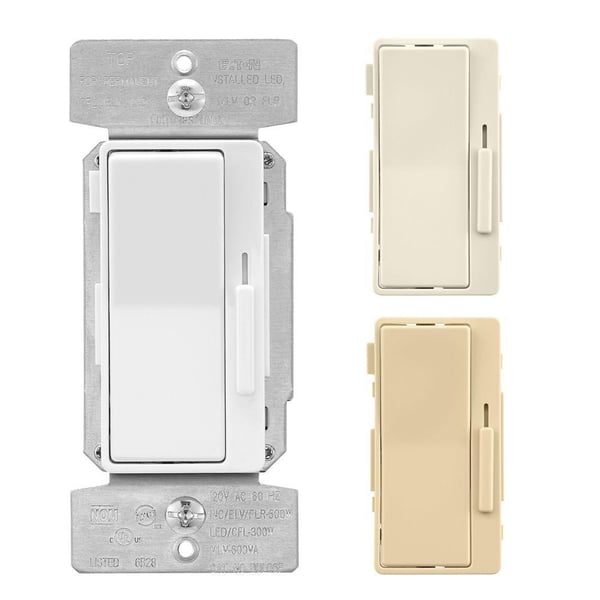

EATON DUL06P-C2 Universal Decorator Dimmer Switch With Preset, 120 VAC, 1 Poles, Ivory/Light Almond/White

Selected Eaton DUL06P C2
Eaton DUL06P C2

Documents

Short Description

Bring the right ambiance to the room and save energy at the same time. Lighting controls reduce the amount of electricity used by your lights by controlling power loads at the switch, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting control dimmers are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent. Available in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

Features

  • Preset feature allows user to return to previous light level when turning lights ON
  • Device can be wired into either 3-way location (load side or line side)
  • Neutral is not required for installation of device
  • Adjustable low-level trim setting for optimal lamp compatibility
  • Faceplate is removable to allow for color changes
  • Radio frequency interference filtering is standard on all models
  • Electrostatic discharge protection
  • Compatible with any decorator wallplate or screwless decorator wallplate
  • Compatible with most common dimmable lighting loads (forward phase-cut)
  • Soft gradual ON feature
  • Integrated full-slide control for easy, precise operation

Specification

Material
Polycarbonate
Voltage Rating
120 VAC
Temperature Rating
-4 to 158 deg F
Type
Universal
Power Rating
300 W
Frequency Rating
60 Hz
Number Of Poles
1
Color
Ivory/Light Almond/White
Series
DUL06P
Dimensions
1.8 in L x 4.2 in H
