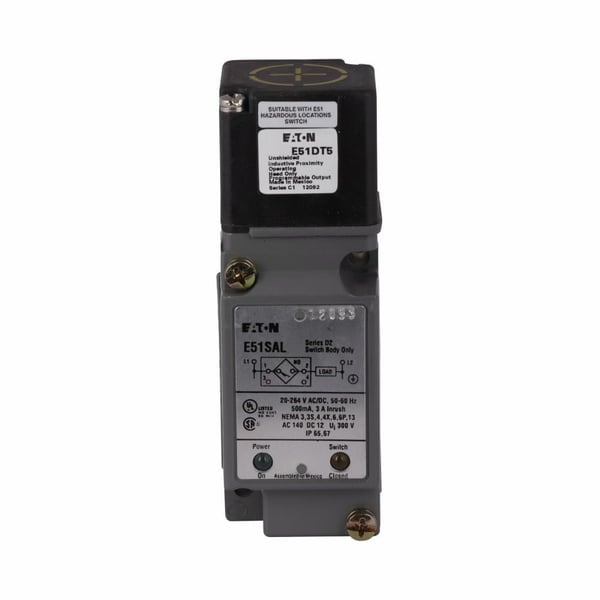

EATON E51ALT5 2-Wire Limit Switch Modular Style Unshielded Proximity Sensor, Inductive, ON Output, 1NO-1NC Contact, 20 to 264 VAC/VDC

Selected E51ALT5EATON E51ALT5 2-Wire Limit Switch Modular Style Unshielded Proximity Sensor, Inductive, ON Output, 1NO-1NC Contact, 20 to 264 VAC/VDC
E51ALT5EATON E51ALT5 2-Wire Limit Switch Modular Style Unshielded Proximity Sensor, Inductive, ON Output, 1NO-1NC Contact, 20 to 264 VAC/VDC

Documents

Short Description

The E51 inductive proximity sensor family from eaton electrical sector combines high performance with a familiar limit switch style housing. Modular, plug in components provide application flexibility, ease of maintenance, less downtime and reduced inventory. Choose from two-wire sensors with AC DC operation or 4-wire sensors in either AC or DC styles. Connection options include terminal, mini connector or various lengths of cable. Choose from standard sensors that detect all types of metallic targets. The next page provides more detail on these sensors.

Features

  • Rugged construction is ideal for industrial environments
  • FKM gaskets ensure a positive seal and high resistance to industry chemicals
  • Direct replacement for worn OUT limit switches
  • Sensor heads and bodies feature captive screws to eliminate loss
  • All sensor heads include a selector switch to program output function to either no or NC
  • Sensor bodies feature bifurcated engagement prongs for a reliable connection when plugging into receptacle stabs
  • Engagement key between sensor body and receptacle prevents improper assembly
  • Sensors accommodate both us and DIN mounting dimensions
  • Wiring terminals feature captive pressure plate saddles for 18 to 12 AWG wire, a green screw identified ground terminal is also included
  • Standard frequency
  • Output ON (1 LED per output) LED indicator
  • Latching short circuit protection
  • AC DC solid state output contact rating

Specification

Frequency Response
15/50 Hz
Mounting Type
Flush
Output Type
ON
Minimum Order Qty
1
Order Interval
1
Amperage Rating
500 mA
Connection Type
Screw
Contact Configuration
1NO-1NC
Environmental Conditions
95% Non-Condensing Relative Humidity
Sensing Method
Inductive
Sensing Position
Top
Series
E51
Temperature Rating
-13 to 158 deg F
Type
2-Wire Limit Switch Modular Style Unshielded
Voltage Rating
20 to 264 VAC/VDC
Application
Automation and Logic Control Equipment Applications
Standard & Approvals
UL Listed, CSA Certified
Material
Die-Cast Zinc
Size
4.53 x 1.54 x 1.78 in
Sensing Distance
0.94 in
Enclosure Type
NEMA 3/3S/4/4X/6/6P/12/13/IP67
Catalog ID
C-HE51ALT5
