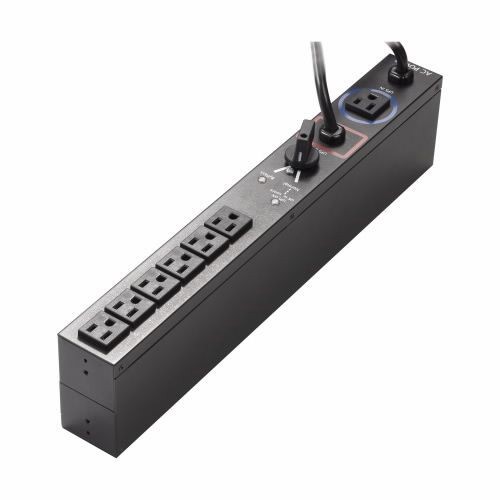

EATON EHBPL1500R-PDU1U 1-Phase Type ePDU Basic Power Distribution Unit, 110 to 125 VAC, 12 A, 6 Outlets, 8 ft L Cord

Selected EHBPL1500R-PDU1UEATON EHBPL1500R-PDU1U 1-Phase Type ePDU Basic Power Distribution Unit, 110 to 125 VAC, 12 A, 6 Outlets, 8 ft L Cord
EHBPL1500R-PDU1UEATON EHBPL1500R-PDU1U 1-Phase Type ePDU Basic Power Distribution Unit, 110 to 125 VAC, 12 A, 6 Outlets, 8 ft L Cord

Documents

Short Description

The Eaton FlexPDU is a basic function power distribution unit with a short power cord for easy, close mounting to a UPS. FlexPDUs are available with a variety of output receptacles, for connection to a wide range of equipment. The Eaton HotSwap maintenance bypass enhances availability by providing service continuity in all situations and facilitates hot swappable UPS battery replacement.

Features

  • Replace the controller and display module without having to power down the rack
  • Specifically designed for Landlord/Tenant (Co-Lo's) allowing for remote access of real-time, vital statistics and operating information on two separate, secure networks
  • Not only physical but hardened digital security, layers within the firmware LDAP, SNMP v3, TLS, encrypted security, allows for Panduit® PDUs to pass standard certified security scans
  • Digital sensors not only allow for multiple sensors on the same bus, but also identify themselves to the controller to simplify setup and commissioning
  • The intelligent PDUs feature an enhanced designed web interface which detects the type of device that you are on and automatically adjusts the screen for an optimal experience
  • Meets demands of densely packed IT equipment in rack or cabinet space
  • Optimal form factor enables efficient rack space utilization
  • Easily identify phase to outlet banks to aid in fault isolation or load balancing
  • Meets NEC requirements and installation guidelines for IT equipment
  • A full breadth offering to seamlessly interoperate with existing building power wiring schemes
  • Rack PDUs that have the ability for aggregate power monitoring to quickly identify potential power issues and reclaim available or under utilized power capacity

Specification

Standard & Approvals
ARRA Compliant, BAA Compliant, RoHS Compliant, UL Listed
Minimum Order Qty
1
Order Interval
1
Catalog ID
EPQEHBPL1500R-PDU1U
Color
Black
Cord Length
8 ft
Dimensions
17.3 in L x 3.8 in W x 2.1 in H
Frequency Rating
50/60 Hz
Number of Outlet Rows
6
Number of Outlets
6
Plug Type
NEMA 5-15P
Amperage Rating
12 A
Application
For power distribution applications
Voltage Rating
110 to 125 VAC
Type
1-Phase Type ePDU Basic
Receptacle Type
(6) 5-15R
