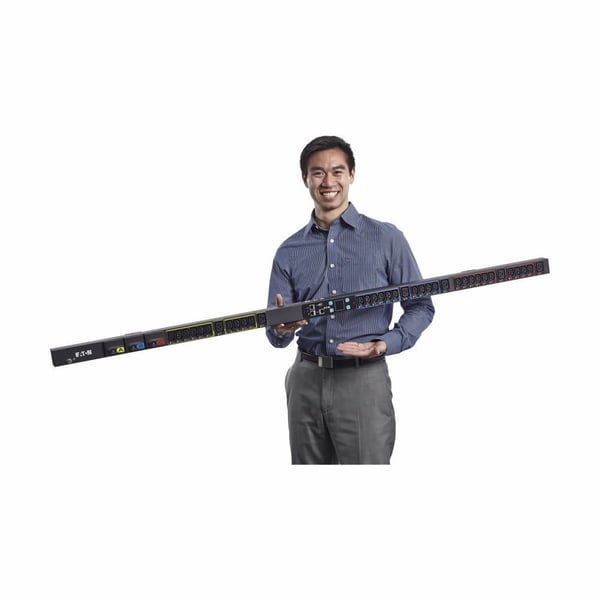

EATON Cutler-Hammer EMA108-10 1-Phase Type ePDU Managed Rack Power Distribution Unit, 120 VAC, 24 A, 24 Outlets, 10 ft L Cord, Surface Mount

Selected EMA108-10EATON Cutler-Hammer EMA108-10 1-Phase Type ePDU Managed Rack Power Distribution Unit, 120 VAC, 24 A, 24 Outlets, 10 ft L Cord, Surface Mount
EMA108-10EATON Cutler-Hammer EMA108-10 1-Phase Type ePDU Managed Rack Power Distribution Unit, 120 VAC, 24 A, 24 Outlets, 10 ft L Cord, Surface Mount

Documents

Short Description

EATON Managed rack PDUs allow you to monitor and control critical factors such as voltage, current and power factor. This level of information allows you to make the right decision when it comes to energy consumption in your data center. Our most advanced rack PDUs, EATON Managed units also feature outlet switching and remote site management.

Features

  • Without spike/surge protection

Specification

Frequency Rating
50/60 Hz
Housing Material
Aluminum
Mounting
Surface
Number of Outlets
24
Minimum Order Qty
1
Order Interval
1
Amperage Rating
24 A
Catalog ID
EPQEMA108-10
Color
Black
Conductor Size
10 AWG
Cord Length
10 ft
Dimensions
9.3 in L x 7.7 in W x 77.6 in H
Plug Type
NEMA L5-30P
Receptacle Type
(24) NEMA 5-20R
Type
1-Phase Type ePDU Managed
Voltage Rating
120 VAC
Application
For power, current, energy metering of input, branch, outlet switching and power distribution applications
Standard & Approvals
cULus Listed, UL Listed
Includes
(2) 1-Pole 20 A Circuit Breakers, (1) SPK012 Installation Accessories, (1) SPK013 Network
