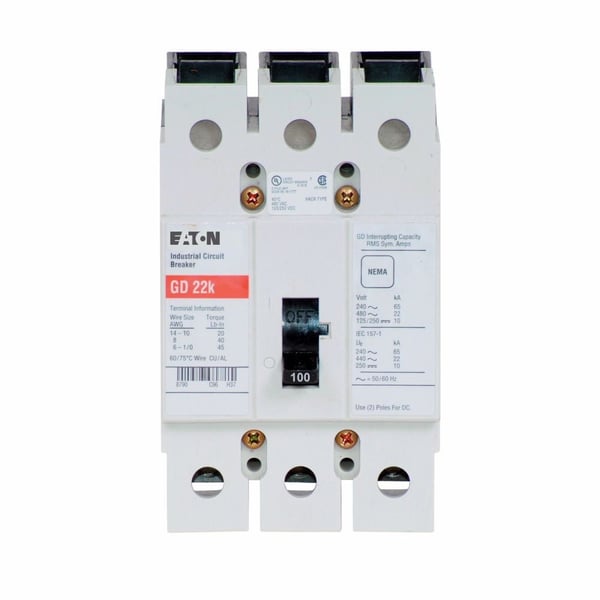

EATON GD3100 C Series Type GD Cable-In/Cable-Out Molded Case Circuit Breaker, 480 VAC/125/250 VDC, 100 A, 14/65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip

Selected GD3100EATON GD3100 C Series Type GD Cable-In/Cable-Out Molded Case Circuit Breaker, 480 VAC/125/250 VDC, 100 A, 14/65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
GD3100EATON GD3100 C Series Type GD Cable-In/Cable-Out Molded Case Circuit Breaker, 480 VAC/125/250 VDC, 100 A, 14/65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip

Documents

Short Description

EATON series C molded case circuit breakers are used in panelboard, switchboard, motor control center and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC/250 VDC with current ratings up to 2500 A.

Features

  • Patented contact design features high speed "blow open" action, resulting in superior performance
  • 65 kA at 240 VAC, 14 kA at 480 VAC interrupt rating

Specification

Frame
G
Frequency Rating
50/60 Hz
Interrupt Rating
14/65 kA
Mounting Type
Bolted-On
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=ZBPV2r7VTgw&t=33s
Actuator Type
Toggle
Amperage Rating
100 A
Catalog ID
C-HGD3100
Connection Type
Line/Load
Dimensions
2.63 in L x 3 in W x 4.88 in H
Enclosure Type
NEMA AB1-1993
Phase
3
Series
C Series
Temperature Rating
40 deg C
Trip Type
Fixed Thermal/Fixed Magnetic/Non-Interchangeable
Type
Type GD Cable-In/Cable-Out
Voltage Rating
480 VAC/125/250 VDC
Wire Size
10 to 1/0 AWG
Application
Panelboard, Switchboard, Motor Control Center and Busway Applications
Standard & Approvals
UL 489, CSA C22.2 No. 5, Federal Specification W-C-375b, HACR Rated, AS 2184, BS 4752, IEC 60947-2, SABS 156, SEV 157-1, VDE 0660
Includes
Mounting Hardware and BMHE
