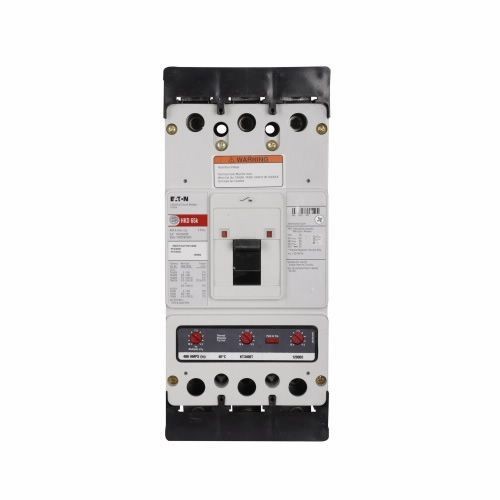

EATON HKD3300 C Series Type HKD Molded Case Circuit Breaker, 600 VAC/250 VDC, 300 A, 65/100 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip

Selected EATON HKD3300 C Series Type HKD Molded Case Circuit Breaker, 600 VAC/250 VDC, 300 A, 65/100 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
EATON HKD3300 C Series Type HKD Molded Case Circuit Breaker, 600 VAC/250 VDC, 300 A, 65/100 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip

Documents

Short Description

Eaton series C molded case circuit breakers are used in panelboard, switchboard, motor control center and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC/250 VDC with current ratings up to 2500 A.

Features

  • K-frame circuit breakers are available as individual components (frame, trip unit, terminals) or factory assembled complete breakers
  • High interrupting capacity
  • 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating

Specification

Frame
K
Frequency Rating
50/60 Hz
Interrupt Rating
65/100 kA
Mounting Type
Panel
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=ZBPV2r7VTgw&t=33s
Amperage Rating
300 A
Catalog ID
C-HHKD3300
Connection Type
Line/Load
Dimensions
4.1 x 5.5 x 5.5 in
Enclosure Type
NEMA AB1-1993
Phase
3
Series
C Series
Temperature Rating
40 deg C
Trip Type
Interchangeable/Fixed Thermal/Magnetic
Voltage Rating
600 VAC/250 VDC
Wire Size
250 to 500 kcmil
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 489, CSA C22.2 No. 5, Federal Specification W-C-375b, HACR Rated, AS 2184, BS 4752, IEC 60947-2, SABS 156, SEV 157-1, VDE 0660
Type
Type HKD
Application
Panelboard, Switchboard, Motor Control Center and Busway Applications
Includes
Frame, Trip Unit and Terminals
