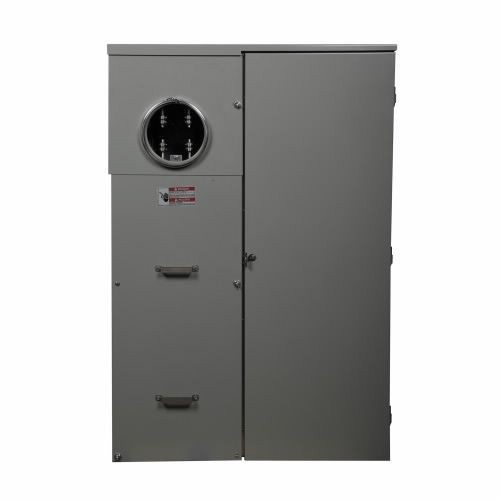

EATON HP816P400BS 1-Phase 8-Space Overhead/Underground Feed House Panel, For Use With CSR2150 Main Circuit Breaker and Type BR/BRH/BW/BWH Secondary Main Circuit Breaker, 400 A at 120/240 VAC, 10/22 kA Interrupt Rating, NEMA 3R Enclosure, Surface Mount

Pick Up Only
Selected EATON HP816P400BS 1-Phase 8-Space Overhead/Underground Feed House Panel, For Use With CSR2150 Main Circuit Breaker and Type BR/BRH/BW/BWH Secondary Main Circuit Breaker, 400 A at 120/240 VAC, 10/22 kA Interrupt Rating, NEMA 3R Enclosure, Surface Mount
EATON HP816P400BS 1-Phase 8-Space Overhead/Underground Feed House Panel, For Use With CSR2150 Main Circuit Breaker and Type BR/BRH/BW/BWH Secondary Main Circuit Breaker, 400 A at 120/240 VAC, 10/22 kA Interrupt Rating, NEMA 3R Enclosure, Surface Mount

Documents

Short Description

Eaton house panel service entrance devices consist of a meter socket and a distribution section. They offer fast, easy and safe installation. Available in CH and BR styles. In addition to residential installations, Ideal for larger homes in north America that require meter breakers, In response to contractor feedback, these panels have been redesigned with a focus on flexibility, simplified wiring and an overall ease of installation, a house panel can also be used for an apartment, condominium, clubhouse or common area.

Features

  • The load conductors can exit the top, bottom, side or back for greater application and installation flexibility
  • Rated for service entrance equipment
  • Pin type door hinges
  • Socket to distribution section is connected via insulated cable for safety
  • Lug landings for compression, lugs not included

Specification

Material
Aluminum
Minimum Order Qty
1
Order Interval
1
Amperage Rating
400 A
Catalog ID
C-HHP816P400BS
Dimensions
46 in L x 33 in W x 7-3/4 in H
Specifications
400 A at 120/240 VAC, NEMA 3R, Overhead/Underground, No Bypass, 22 kA, Surface Mounting, 8-Space
Suitable For Use With
CSR2150, Type BR/BW/BWH Main Breaker and Meter Breaker
Type
1-Phase
Application
Apartment, Condominium and Clubhouse/Common Area Applications
Standard & Approvals
ARRA Compliant, BAA Compliant, EUSERC Approved, RoHS Compliant, UL Listed
