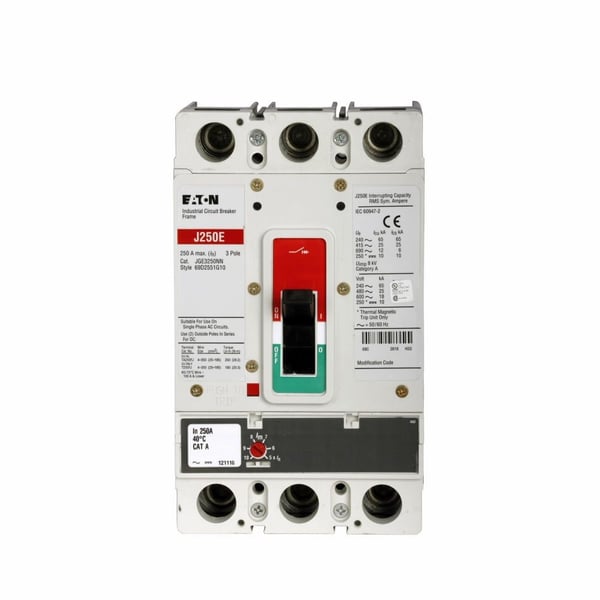

EATON JGE3125FAG Type JGE Molded Case Circuit Breaker, 600 VAC, 125 A, 18/25/65 kA Interrupt, 3 Poles, Adjustable Magnetic/Fixed Thermal Trip

Selected JGE3225FAWEATON JGE3200FAG Type JGE Molded Case Circuit Breaker, 600 VAC, 200 A, 18/25/65 kA Interrupt, 3 Poles, Adjustable Magnetic/Fixed Thermal Trip
JGE3225FAWEATON JGE3200FAG Type JGE Molded Case Circuit Breaker, 600 VAC, 200 A, 18/25/65 kA Interrupt, 3 Poles, Adjustable Magnetic/Fixed Thermal Trip

Documents

Short Description

Series G molded case circuit breakers are designed for circuit protection needs across the globe. A complete line of user friendly accessories and high performance interruption ratings meet a host of different application, industry and regional requirements. Current ratings range from 15 to 2500 A with voltages up to 690 VAC. Thermal magnetic and electronic trip units are available as well as residual ground fault and 30 mA earth leakage protection options.

Features

  • Compact design frees up panel space
  • Common field-fit internal accessories make installation and custom configuration easy
  • Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • 80% rated
  • 65 kA at 240 VAC, 25 kA at 415/480 VAC, 18 kA at 600 VAC interrupt rating

Specification

Frequency Rating
50/60 Hz
Interrupt Rating
18/25/65 kA
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
125 A
Connection Type
Line/Load
Series
G Series
Temperature Rating
40 deg C
Trip Range
625 to 1250 A
Type
Type JGE
Voltage Rating
600 VAC
Application
Heating, Ventilation, HVACR, Air Conditioning and Refrigeration Applications
Standard & Approvals
AS 2184, BS 4752, CE Marking, CSA Certified, IEC Certified, SABS 156, SEV 157-1, UL Listed, VDE 0660
Trip Type
Adjustable Magnetic/Fixed Thermal
Dimensions
3.57 x 4.13 x 4.13 in
Catalog ID
C-HJGE3125FAG
Video
https://www.youtube.com/watch?v=LcFMAGwrZvM
Frame
JG
Includes
Frame, Trip Unit, Mounting Hardware and Standard Terminals
