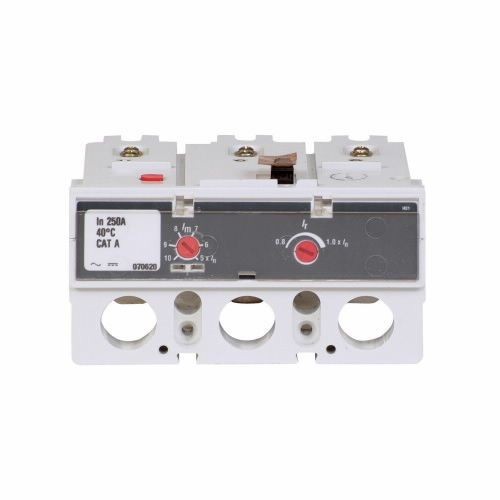

EATON JT3250T Non-Interchangeable Thermal Magnetic Breaker Trip Unit With C Series Molded Case Circuit Breaker, 3 Pole, 250 A, JD/HJD/JDC/JT Frame, For Use With C Series Molded Case Circuit Breaker

Selected EATON JT3250T Non-Interchangeable Thermal Magnetic Breaker Trip Unit With C Series Molded Case Circuit Breaker, 3 Pole, 250 A, JD/HJD/JDC/JT Frame, For Use With C Series Molded Case Circuit Breaker
EATON JT3250T Non-Interchangeable Thermal Magnetic Breaker Trip Unit With C Series Molded Case Circuit Breaker, 3 Pole, 250 A, JD/HJD/JDC/JT Frame, For Use With C Series Molded Case Circuit Breaker

Short Description

Eaton electronic trip units are designed to meet a broad range of monitoring and protection requirements. Curve shaping, zone selective interlocking, arc flash reduction, diagnostics and system monitoring and communications are all features available by selecting the appropriate trip unit for the specific requirement. True rms sensing offers increased accuracy and reliability.

Features

  • Interchangeable trip units with long time and instantaneous (LI) trip functions
  • Bolt-on mounting
  • Adjustable IR switch allows for continuous current settings and eliminates the need for rating plug
  • Long delay i2t setting with variable trip times
  • Long, short, instantaneous and ground fault protection

Specification

Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=PY52j05p7to
Breaker Frame Type
JT/JD/HJD/JDC
Catalog ID
C-HJT3250T
Current Rating
250 A
Dimensions
5-1/4 x 6-3/4 x 4-1/4 in
Suitable For Use With
C Series Molded Case Circuit Breaker
Type
Non-Interchangeable Thermal Magnetic
Application
Circuit Protection Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, IGCC 4927
