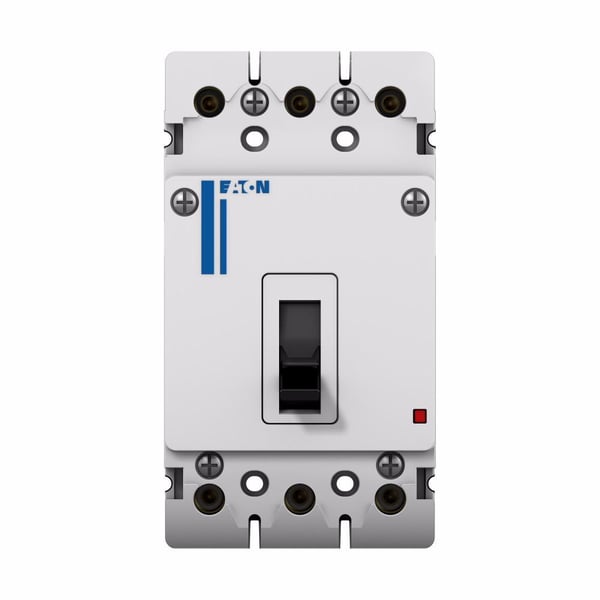

EATON Power Defense™ PDG13F0015TFFJ PDG1 Globally Rated Molded Case Circuit Breaker, 240/480/600 VAC/250 VDC, 15 A, 14/22/25/35 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Selected IDW IMAGE e5dac483a196f510710b51672a24663877693c120771fa8ba5494d62fbfa5766
IDW IMAGE e5dac483a196f510710b51672a24663877693c120771fa8ba5494d62fbfa5766

Documents

Short Description

The Power Defense molded case circuit breaker portfolio is globally rated in a small footprint for easy adaptability no matter the application or project requirement. A circuit breaker with communicating electronic trip units and the ability to generate the data to help you optimize your facilities' performance, and to help keep your employees, customers and end-users safe by reducing the risk of arcflash events.

Features

  • Modular design
  • Connect to your network or the cloud with built-in communication capability
  • Mitigate arc flash to keep your employees, customers and end users safe
  • 35 kA at 240 VAC, 25 kA at 480 VAC, 14 kA at 600 VAC, 22 kA at 250 VDC

Specification

Trip Type
Thermal Magnetic
Number Of Poles
3
Amperage Rating
15 A
Connection Type
Line/Load Terminal
Interrupt Rating
14/22/25/35 kA
Voltage Rating
240/480/600 VAC/250 VDC
Enclosure Type
IP30
Material
Glass Polyester
Frequency Rating
50/60 Hz
Power Rating
<=4.3 W
Type
Globally Rated
Frame
Size 1
Dimensions
139.7 mm H x 76.2 mm W x 75.95 mm D
Temperature Rating
-20 to 70 deg C
Series
PDG1
