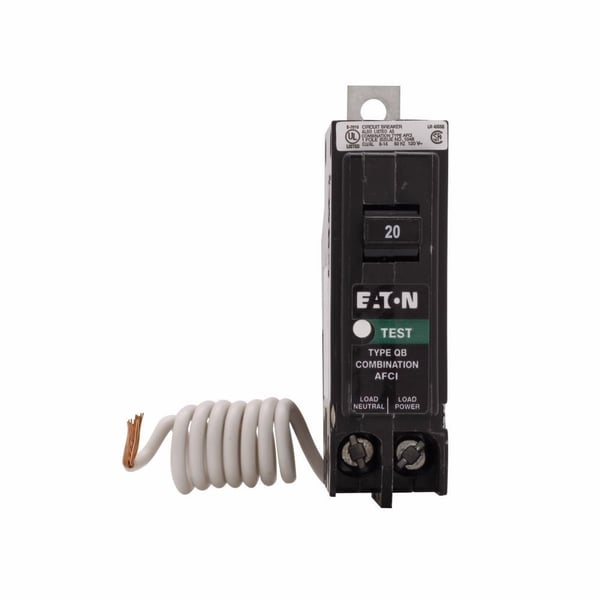

EATON QuickLag® QB1020CAF Type QB Combination AFCI Circuit Breaker, 70 to 160 VAC, 20 A, 10 kA Interrupt, 1 Poles

Selected QB1020CAFEATON QuickLag® QB1020CAF Type QB Combination AFCI Circuit Breaker, 70 to 160 VAC, 20 A, 10 kA Interrupt, 1 Poles
QB1020CAFEATON QuickLag® QB1020CAF Type QB Combination AFCI Circuit Breaker, 70 to 160 VAC, 20 A, 10 kA Interrupt, 1 Poles

Documents

Short Description

EATON type QB (1 in) bolt-on combination AFCI is available in 15 and 20 A configurations. EATON has also included a diagnostic LED as a standard feature in the QB AFCI which indicates the most recent trip code to assist in troubleshooting.

Features

  • Lifetime trip code retention
  • Overvoltage protection
  • Continuous self-test of electronic components
  • Diagnostic LED to access most recent trip code
  • 0 to 93% non-condensing relative humidity

Specification

Frequency Rating
60 Hz
Interrupt Rating
10 kA
Number Of Poles
1
Amperage Rating
20 A
Voltage Rating
70 to 160 VAC
Temperature Rating
-31 to 66 deg C
Application
Conventional Energy, Renewable Energy and Alternative Energy Generation, Datacenters, IT Space - CI, Hyper Converged, Marine Vessels and Equipment and Circuit Protection Applications
Standard & Approvals
UL 1699 File No. E7819
Type
Type QB Combination
Dimensions
5 in L x 3 in W x 1 in H
Mounting Type
Bolted-On
Power Rating
0.75 W
