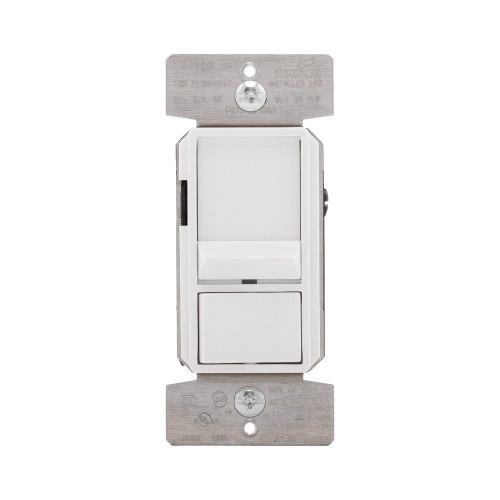

EATON SAL06P2-W AL Series Preset Slide Dimmer, 120 VAC, 1 Poles, 3-Way On/Off Operation, White
EATON SAL06P2-W AL Series Preset Slide Dimmer, 120 VAC, 1 Poles, 3-Way On/Off Operation, White
SKU: EAGSAL06P2-W
Manufacturer Part Number: SAL06P2-W
UPC: 032664749209
Features
- Preset feature allows user to return to previous light level when turning lights on
- Integrated full-slide control for easy, precise operation
- Device can be wired into either 3-way location (load side or line side)
- Neutral is not required for installation of device
- Adjustable low-level trim setting for optimal lamp compatibility
- Radio frequency interference filtering is standard on all models
- Electrostatic discharge protection
- Precise color matching
- Compatible with any decorator wallplate or screwless decorator wallplate
- Compatible with most common dimmable lighting loads (phase-cut)
- Adjustable rapid start feature ensures lamp start-up even at low dim levels
Specification
| Power Rating | 300 W |
|---|---|
| Series | AL Series |
| Start Type | Rapid |
| Temperature Rating | -4 to 158 deg F |
| Terminal Type | Back/Side Wired |
| Type | Preset |
| Voltage Rating | 120 VAC |
| Standard & Approvals | cULus Listed, NOM Certified, UL 94 Flammability Rated |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://players.brightcove.net/1302165871001/default_default/index.html?videoId=6142624513001 |
| Catalog ID | EAGSAL06P2-W |
| Color | White |
| Dimensions | 1.8 in W x 1.26 in D x 4.2 in H |
| Frequency Rating | 60 Hz |
| Lamp Type | CFL/LED |
| Material | Polycarbonate |
| Number Of Poles | 1 |
| Operation Mode | 3-Way On/Off |
