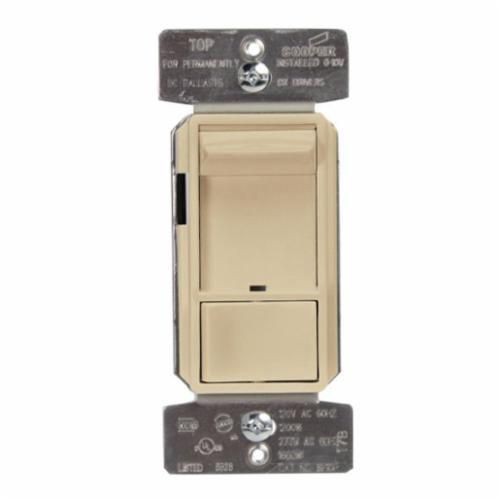

Cooper Wiring SF10P-V 3-Way Dimmer, 120/277 VAC, 10/6 A, 1 Pole, Ivory

Selected SF10P-VCooper Wiring SF10P-V 3-Way Dimmer, 120/277 VAC, 10/6 A, 1 Pole, Ivory
SF10P-VCooper Wiring SF10P-V 3-Way Dimmer, 120/277 VAC, 10/6 A, 1 Pole, Ivory

Documents

Short Description

The Cooper Wiring Devices SKYE 0-10 Volt Dimmer provides full-range classic linear slide dimming for 0-10V compatible dimmable light sources. These units are ideal for residential and light commercial applications and are compatible with Cooper Wiring Devices decorator style devices and wallplates. The preset ON-OFF in switch automatically returns controlled light(s) to a preset level without disturbing the brightness level. The device is designed for both Single-Pole (one-location) and 3-Way (multi-location) applications.

Features

  • Preset feature allows user to return to previous light level when turning lights ON
  • Integrated full slide control for easy, precise operation
  • Neutral is not required for installation of device
  • Adjustable high-level trim setting for optimal lamp compatibility
  • Electrostatic discharge protection

Specification

Frequency Rating
60 Hz
Mounting Type
Wall
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Color
Ivory
Control
Preset Slide
Power Rating
1200/1660 W
Temperature Rating
-20 to 70 deg C
Terminal Type
Back and Side Wire
Type
3-Way
Voltage Rating
120/277 VAC
Application
For lighting purpose
Standard & Approvals
cULus Listed, UL 1472, NOM Certified
Dimensions
3.7 in H x 1.8 in W x 1.25 in D
Catalog ID
EAGSF10P-V
Amperage Rating
10/6 A
