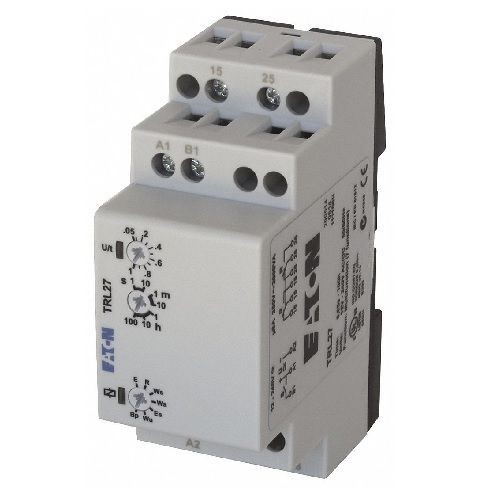

Cutler-Hammer TRL27 4-Function Compact Universal Timing Relay, 0.05 s to 100 hr Time Setting, 12 to 240 VAC/VDC, DPDT Contact Form, 2 Poles

Selected Cutler-Hammer TRL27 4-Function Compact Universal Timing Relay, 0.05 s to 100 hr Time Setting, 12 to 240 VAC/VDC, DPDT Contact Form, 2 Poles
Cutler-Hammer TRL27 4-Function Compact Universal Timing Relay, 0.05 s to 100 hr Time Setting, 12 to 240 VAC/VDC, DPDT Contact Form, 2 Poles

Short Description

Eaton universal TR series timers are our most flexible and cost effective timing relays available. products are available with up to seven user selectable functions and seven user selectable time ranges. each unit is DIN-rail mountable with a direct connection, eliminating the need for additional sockets. the universal TR series timers are available in SPDT and DPDT contact configurations and have a compact IEC style footprint and a universal input voltage range for AC and DC applications.

Features

  • Multiple user selectable timing functions and timing ranges in a single unit reduce product variations and stock keeping units
  • Universal input voltages from 12 to 240 VAC/VDC eliminate the need to order and stock separate coil voltages
  • Compact, DIN-rail mountable case reduces panel size
  • Advanced led indication makes troubleshooting easy
  • Staggered terminal locations allow access to lower level terminals after wiring
  • Self-extinguishing plastic enclosure material
  • ON/off delay, power triggered, single shot leading or trailing edge voltage controlled and control input, flasher pause first, on delay control signal start, trailing edge OFF functions

Specification

Mounting Type
DIN Rail
Number Of Poles
2
Operation Mode
7-Function
Minimum Order Qty
1
Order Interval
1
Catalog ID
C-HTRL27
Contact Form
DPDT
Dimensions
2.56 in L x 1.38 in W x 3.43 in H
Enclosure Type
IP40
Series
TR Series
Time Setting
0.05 s to 100 hr
Type
4-Function Compact Universal
Voltage Rating
12 to 240 VAC/VDC
Application
Automation and Logic Control Equipment Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, cULus Recognized, CE Marked, CSA Certified, TUV Certified, HACR Rated
Amperage Rating
8 A
