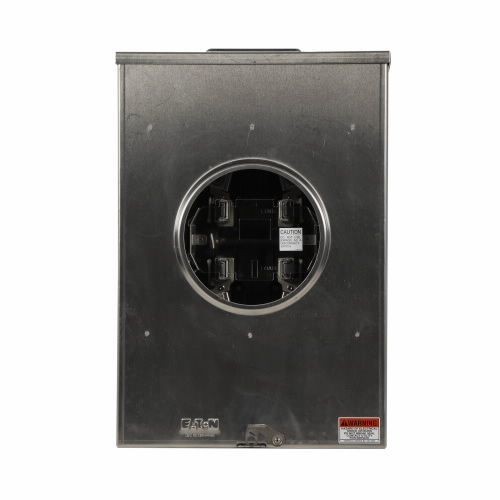

EATON UFTE7213BCH 4-Wire 1-Position Commercial Service Meter Socket, 600 VAC, 200 A, 3 ph Phase

Selected EATON UFTE7213BCH 4-Wire 1-Position Commercial Service Meter Socket, 600 VAC, 200 A, 3 ph Phase
EATON UFTE7213BCH 4-Wire 1-Position Commercial Service Meter Socket, 600 VAC, 200 A, 3 ph Phase

Documents

Short Description

EATON line of 1-position, self-contained meter sockets house the utilities electrical watthour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass, and more.

Features

  • With barrel lock with guard provision, 14 to 2 AWG copper grounding connector for triplex, lever bypass
  • Block assembly base exceeds 400 in-lb of torque
  • 1-piece, die-run enclosure
  • High visibility EATON name embossed on cover
  • Knockouts are installer friendly
  • Oversized 7/8 in Dia, heavy duty, steel lug screws
  • Slide nuts are captive
  • Integral triplex or quadplex ground extruded in neutral lug
  • 100% plated bridge with 4-point mounting
  • KAIC rating up to 200 kAIC rating with specified overcurrent protection devices
  • Provides a complete EATON residential solution
  • Copper plated alloy jaws with reinforcing spring
  • 6 AWG to 350 kcmil line/load

Specification

Hub Size
3-5/16 in
Hub Type
Small Open
Number of Jaws
7
Phase
3
Terminal Type
Line/Load
Voltage Rating
600 VAC
Wire Size
6 AWG to 350 kcmil
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed
Amperage Rating
200 A
Cover Type
Ringless
Feed Type
Overhead/Underground
Includes
Internal Lock Receiver Bracket
Type
4-Wire 1-Position Commercial Service
Dimensions
20 in L x 13-1/2 in W x 6 in H
