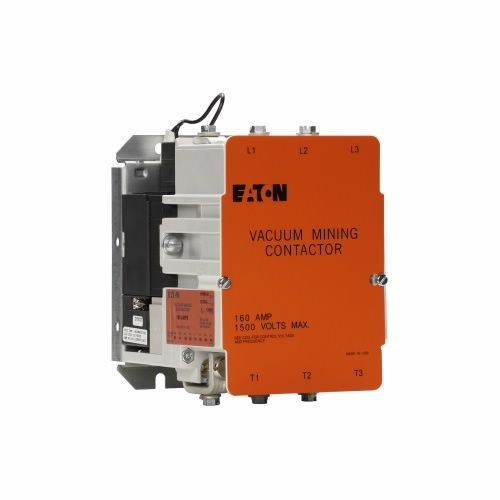

EATON VM160CJZ1 Mining Rated Non-Reversing Vacuum Contactor, 110 to 120 VAC V Coil, 160 A

Selected EATON VM160CJZ1 Mining Rated Non-Reversing Vacuum Contactor, 110 to 120 VAC V Coil, 160 A
EATON VM160CJZ1 Mining Rated Non-Reversing Vacuum Contactor, 110 to 120 VAC V Coil, 160 A

Documents

Short Description

Vacuum contactors and starters were designed for starting and controlling 3-phase, 50/60 Hz, AC motors. Each contact is enclosed in a vacuum bottle to reduce and contain contact arcing. This design offers excellent performance for plugging and jogging applications.

Features

  • Rugged, compact and lightweight
  • Quiet operation
  • Long service life
  • Without lugs
  • 50 hp at 200 VAC, 60 hp at 230 VAC, 100 hp at 380 VAC, 125 hp at 460 VAC, 150 hp at 575 VAC, 200 hp at 800 VAC, 400 hp at 1500 VAC coil power rating

Specification

Frequency Rating
50/60 Hz
Maximum Load Current
160 A
Minimum Order Qty
1
Order Interval
1
Coil Voltage
110 to 120 V
Type
Mining Rated Non-Reversing
Application
Plugging and Jogging Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, CSA Certified
Dimensions
4.83 in W x 5.96 in D x 6.63 in H
Coil Power Rating
50 hp, 60 hp, 100 hp, 125 hp, 150 hp, 200 hp, 400 hp
Catalog ID
C-HVM160CJZ1
