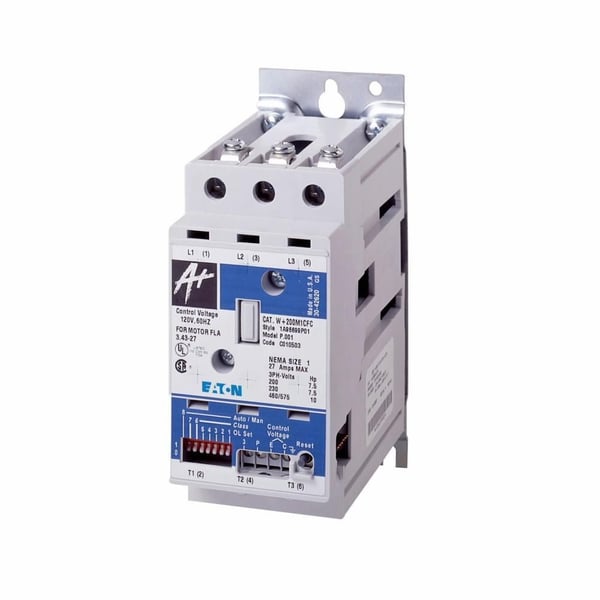

EATON W+200M1CFC W200 Open NEMA Starter, 120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure

Selected W+200M1CFCEATON W+200M1CFC W200 Open NEMA Starter, 120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
W+200M1CFCEATON W+200M1CFC W200 Open NEMA Starter, 120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure

Documents

Short Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor. These adjustable bimetallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

Specification

Reset Type
Automatic/Manual
Series
W200
Type
Open
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, UL Listed
Minimum Order Qty
1
Order Interval
1
Action
Non-Reversing
Amperage Rating
27 A
Coil Voltage
120 VAC
Enclosure Type
NEMA 1
Frequency Rating
60 Hz
Number Of Poles
3
Overload Relay
Solid-State
Full Load Current
3.15 to 27 A
Dimensions
8.661 in L x 5.9055 in W x 5.5118 in H
Catalog ID
C-HW+200M1CFC
Motor Power
7-1/2 hp
