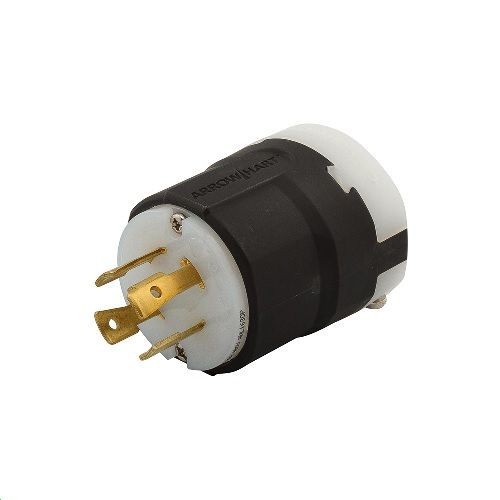

Eaton Wiring Devices AHL1630P Ultra Grip Plug, 480 VAC, 30 A, 3 Poles, 4 Wires
Eaton Wiring Devices AHL1630P Ultra Grip Plug, 480 VAC, 30 A, 3 Poles, 4 Wires
SKU: EAGAHL1630P
Manufacturer Part Number: AHL1630P
UPC: 032664738081
Short Description
Features
- EPDM gasket seals cord hole from dust and debris
- Back wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Clear cover over wiring compartments allows easy inspection of wiring terminations
- Rating printed on side of device
- Largest-in-class grommet size allows for entire cord size range
- Nylon outer shell, polycarbonate terminal retainer, brass blade, bronze, tin plated line contact, steel, tin plated terminal clamp, NO 10-32 brass, zinc plated terminal screw NO 10-32 brass ground screw steel, nickel plated assembly screw EDPM gasket/dust shield, steel, nickel plated cord clamp screw nylon cord clamp
- 3-phase
- Back wire
- 1000 VAC twice the device withstand rating of dielectric voltage
- 16 to 8 AWG terminal accommodation
- L16-30 NEMA configuration
Specification
| Material | Nylon |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 60 |
| Terminal Type | Screw |
| Voltage Rating | 480 V |
| Standard & Approvals | UL 94 |
| Amperage Rating | 30 A |
| Dimensions | 4.19 in L x 2.28 in W x 2.31 in H |
