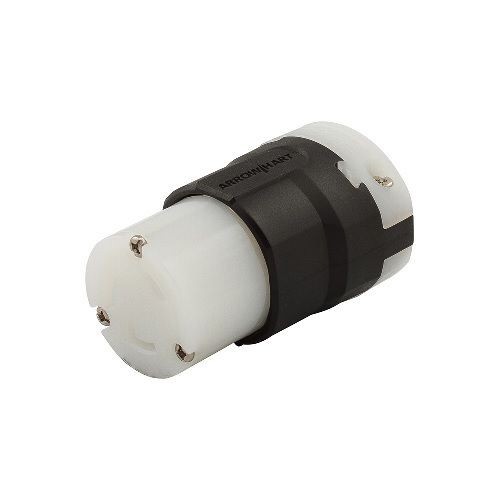

Eaton Wiring Devices Arrow Hart AHL630C Straight Ultra Grip Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Eaton Wiring Devices Arrow Hart AHL630C Straight Ultra Grip Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
SKU: EAGAHL630C
Manufacturer Part Number: AHL630C
UPC: 032664738463
Features
- Superior design and performance make Arrow Hart's devices the ideal choice for industrial applications
- EPDM gasket seals cord hole from dust and debris
- Back wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Clear cover over wiring compartments allows easy inspection of wiring terminations
- Rating printed on side of device
- Largest-in-class grommet size allows for entire cord size range
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Color | Black/White |
| Temperature Rating | -40 to 60 |
| Terminal Type | Back Wired |
| Type | Straight |
| Voltage Rating | 250 V |
| Application | For industrial applications |
| Standard & Approvals | cULus Listed, NAFTA Compliant, RoHS Compliant |
| Dimensions | 3.61 in H x 2.1 in W |
| Cord Diameter | 3/8 to 1 |
| Catalog ID | EAGAHL630C |
| NEMA Rating | NEMA L6-30 |
